Durable Hot Wire Anemometer for Precise HVAC Airflow Measurement - AZ Instrument Corp.
AZ Instrument Corp. has a wide variety of Durable Hot Wire Anemometer for many different applications. With many years of experience, we have the core technical knowledge for Durable Hot Wire Anemometer to satisfy our customers' demands. Our Durable Hot Wire Anemometer is known for their long work life, easy handling, and low maintenance. This has been possible with the use of the best raw materials that go into the manufacturing of our expansive product line. Thank you for visiting our website and we hope you enjoy our products as much as we do.
8952 AZ EB
Durable Hot Wire Anemometer
Welcome to check the Features, Application, Specification of AZ 8952 Handheld Hot Wire Anemometer with Temp. as follows
Features :
AZ 8952 Durable Hot Wire Anemometer with 8 mm Slim Probe is developed under high-quality manufacturing processes to ensure reliability and safety:
ISO 9001 Facility: Manufactured in an ISO 9001 certified environment.
CE EN 61326-1: Designed and tested to meet European EMC safety standards.
RoHS & REACH Compliant: We provide a Manufacturer’s Self Declaration, ensuring the product meets environmental safety standards for hazardous substances.
AZ 8952 Handheld Hot Wire Anemometer with Temp. features:

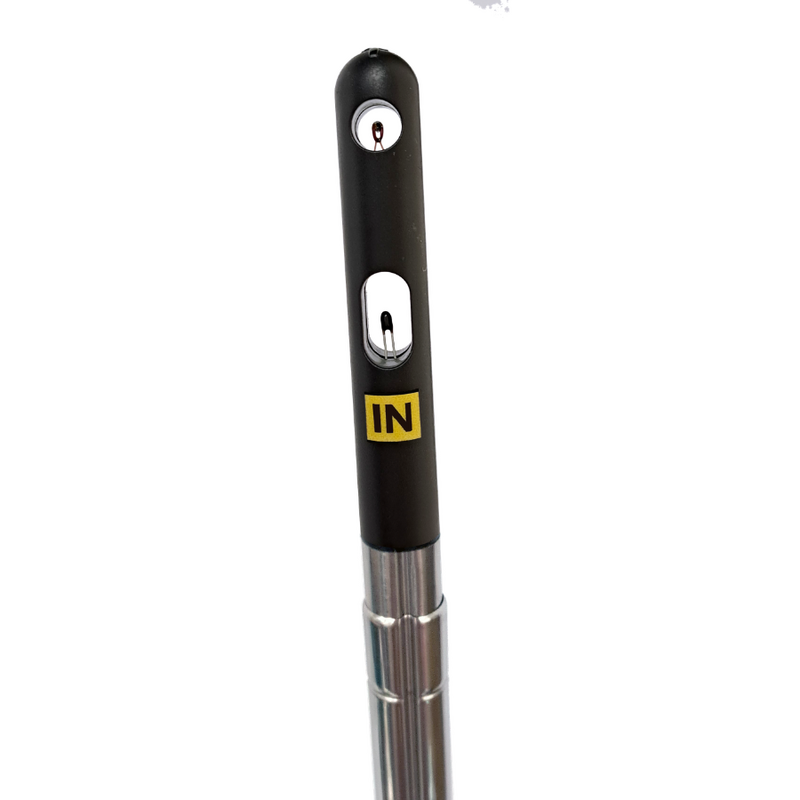

* Robust telescoping hot wire probe. Compact thermal sensor is ideal for in-duct measuring to minimizes turbulence effect and suited for low flow and velocity applications
* Measures velocity，volume flow (cmh，cmm，cfm，I/s) and temperature
* Duct temp. change has limited impact to reading accuracy
* Timed & multi-point average flow calculations
* In-duct air balancing with fast response time
* Depth and direction indicators. Hands free magnet
Application :
Application of 8952 AZ Air flow Measuring Devices:
The portable AZ 8952 Handheld Hot Wire Anemometer is a portable device featuring a robust telescoping hot wire probe and a compact design. It is exceptionally suited for a range of applications, particularly within the HVAC (Heating, Ventilation, and Air Conditioning) industry, as well as for facility maintenance departments, environmental consultants, and manufacturers. The following are some of its key applications:
• In-duct air velocity and flow measurements:
AZ 8952 Hot Wire Anemometer is ideal for assessing and optimizing airflow within duct systems, ensuring the efficient operation of HVAC systems.
• Environmental testing:
AZ 8952 Hot Wire Anemometer can measure air velocity and volume in protected storage areas, homes, office environments, or even high-temperature processing environments.
• Air balancing:
AZ 8952 Hot Wire Anemometer is a valuable tool for HVAC technicians to balance air distribution across different zones of a building, thereby improving comfort and energy efficiency.
• Performance evaluation:
AZ 8952 Hot Wire Anemometer aids in evaluating the performance of air conveyors, blowers, motors, furnace exhausts, flow hoods, cleanrooms, and paint spray booths.
AZ 8952 Hot Wire Anemometer was being designed and manufactured by AZ Instrument, a well experienced manufacturer for Environmental Measuring Instrument
Specification :
Specification of AZ 8952 Handheld Hot Wire Anemometer with Temp.:
| Model | 8952 |
| Wind Speed Range | 0.15~20 M/S (30.0~3937 ft/m) |
| Wind Speed Accuracy | ±(5% of reading+0.1) M/S ±(5% of reading+20) ft/m |
| Wind Speed Resolution Range | Below 10 M/S:0.01, above 10 M/S:0.1 (Below 100 ft/m:0.1, above 100 ft/m:1) |
| Air Temperature Range | -10.0~50℃ (14.0~122.0°F) |
| Air Temperature Accuracy | ±1℃(1.8°F): 0.0~50.0℃ ±1.5℃(2.7°F): Below 0.0℃ |
| Air Temperature Resolution | 0.1℃, 0.1℉ |
| Wind Speed Response Time | 0.5 seconds (typical) |
| Temperature Response Time | 60 seconds (typical) |
| LCD Update | Every second |
| Air Volume Display | 0~99999 |
| Air Volume Resolution | 0.1 (0~9999.9) or 1 (10000~99999) |
| Air Volume unit | cmm, cmh, l/s, cfm |
| LCD Size | 44(L) * 26(W) mm |
| Operating Temperature | 0~50℃ |
| Operating RH% | Humidity ＜80% |
| Storage Temperature | -10~50℃ |
| Storage RH% | Humidity ＜90% |
| Meter Size | 175(L) * 70(W) * 33(H) mm |
| Probe | 8mm diameter |
| Telescope Tube | 96cm (38 inch) extended 26.5cm (10 inch) storage |
| Weight | ~331g |
| Battery | AAA*4 PCS |
| Standard Package | Meter with built-in hotwire probe, Batteries, Magnet, Manual, O-rings, Hard Carry Case |
Youtube :
Welcome to learn more about the AZ 8952 Handheld Hot Wire Anemometer with Temp. from the following product introduction video via YouTube.
< AZ 8952 Handheld Hot Wire Anemometer Operation Video
< AZ 8952 Handheld Hot Wire Anemometer Unboxing Video
FAQ :
【FAQ of AZ 8952 Durable Hot Wire Anemometer with 8 mm Slim Probe】
Q1: Why are many hot wire anemometers easily damaged?
A: Conventional hot wire sensors use an extremely thin heated element to detect airflow. This delicate structure is sensitive to physical impact, dust, oil, and moisture. In real HVAC or field environments, contamination, accidental contact, or frequent temperature changes can weaken or break the sensing wire, leading to unstable readings or sensor failure.
Q2: What makes the 8952 more reliable than typical hot wire anemometers??
A: The 8952 features a durable sensor design that provides stable airflow readings with reduced influence from ambient temperature changes.
Q3: Why is the 8 mm slim probe important?
A: The slim probe allows easy access to narrow ducts, diffusers, and confined spaces while maintaining high sensitivity for low air velocity measurement.
