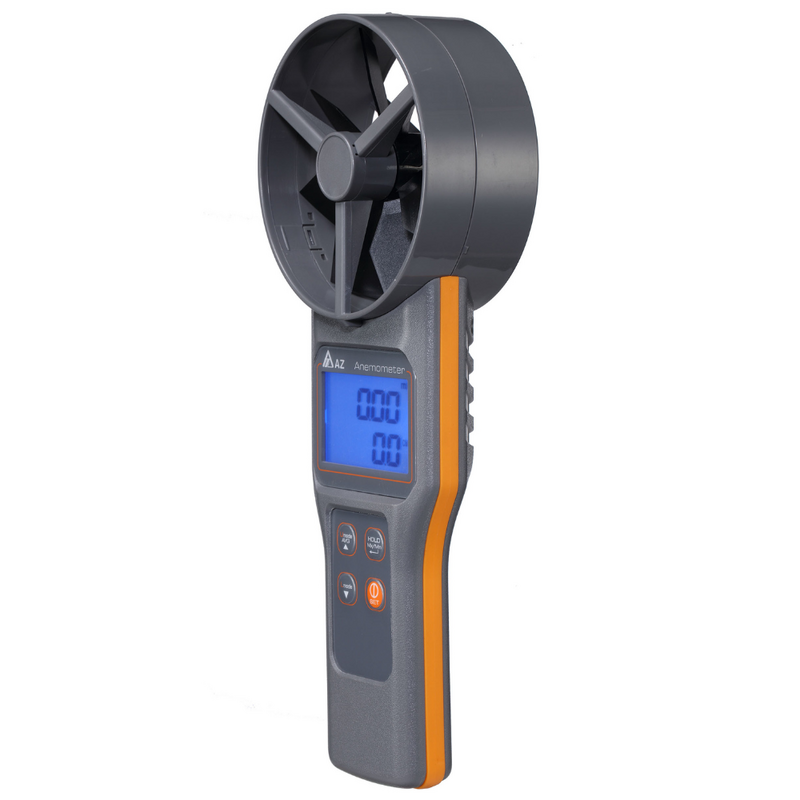

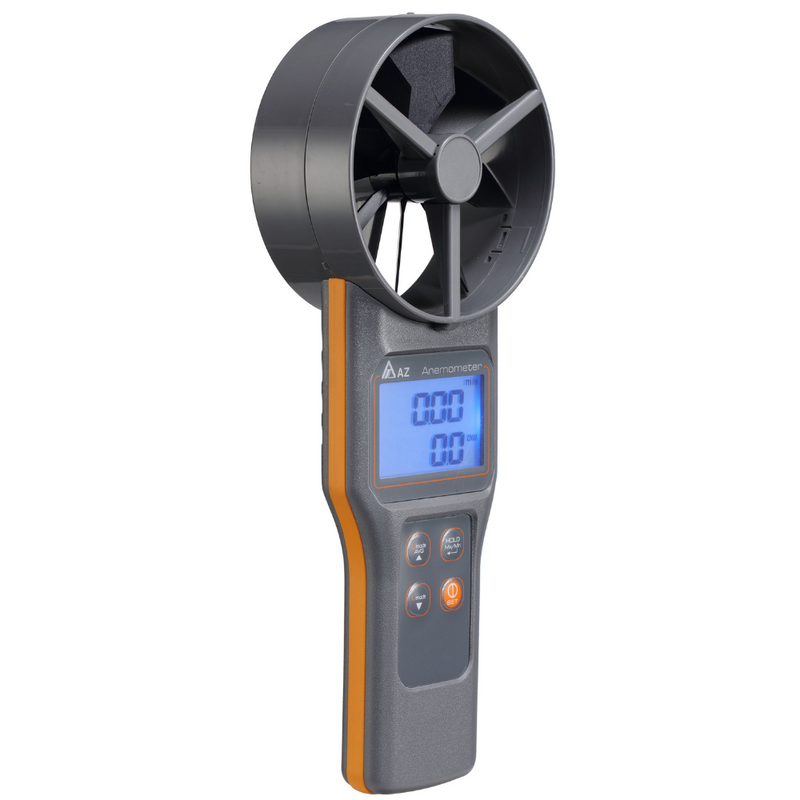

8916 AZ 10cm Vane Anemometer: Measure Air Speed, Volume & Temp | AZ Instrument Corp.
AZ Instrument Corp. has been a leading provider of professional Temp. Anemometer. Our products have always been known for quality, reliability and solid performance, making AZ Instrument Corp. becomes the most specified brand in the Temp. Anemometer business. We manufacture our range of products according to the specifications of the customers with high-quality raw materials that are tested for their efficiency. Please do not hesitate to contact us if you are interested in our Temp. Anemometer.
8916 AZ-Bulk Order
Temp. Anemometer
Welcome to check the Features, Application, Specification , YouTube of 8916 AZ 10cm Vane Anemometer: Measure Air Speed, Volume & Temp | AZ Instrument Corp. as follows
Features :
The AZ 8916 Vane Anemometer (Temp.) is developed under high-quality manufacturing processes to ensure reliability and safety:
ISO 9001 Facility: Manufactured in an ISO 9001 certified environment.
CE EN 61326-1 & IEC 61000: Designed and tested to meet European EMC safety standards.
RoHS & REACH Compliant: We provide a Manufacturer’s Self Declaration, ensuring the product meets environmental safety standards for hazardous substances.
AZ 8916 Thermal Anemometer features:
* Measures air velocity, volume, temperature
* 10 cm diameter vane type
* Auto airflow cone recognize (Square /round type)
* Max. /min. value, Hold function
* Unlimited points average auto calculation
* Time weighted average auto calculation
* Inlet and outlet measurement is doable
* Auto power off in 20 mins inactivity
* Low battery indicator
* Blue back-light for dark area operation
Measure air velocity, volume, and temperature accurately with the 8916 AZ 10cm Vane Anemometer. Features auto airflow cone recognition and time-weighted average calculations. Ideal for HVAC and industrial use.
Application :
Application of 8916 AZ Air Flow Measuring Devices:
The 8916 Portable AZ Wind Speed Meter can measure the Air Speed, Air Velocity, Air Volume, Temp., which is the best choice as the wind speed monitoring device in HVAC (Heating, Ventilation, Air Conditioning and Refrigerating) or industrial related application.

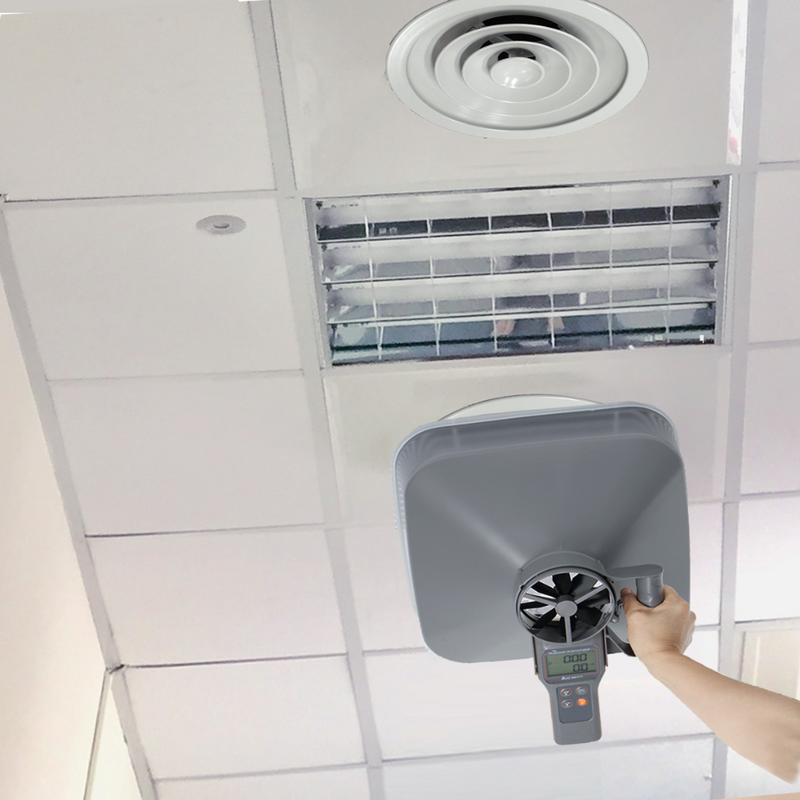

The portable 8916 AZ Air Flow Thermometer has the 10 cm diameter vane type. It could attach to the specific air flow cone to measure the volume quickly. User just needs to install the compatible airflow cone, the meter will recognize the area for air volume calculations automatically. The air flow cone set has the round and square size, which could be met with most applications.
The 8916 AZ Temperature Air Flow Meter was being designed and manufactured by AZ Instrument, a well experienced manufacturer for Environmental Measuring Instrument.
Specification :
Specification of 8916 10 cm Vane Temperature Anemometer:
Model
8916
Wind Speed Range
0.20~30.00 m/s
Wind Speed Accuracy
±(1.5% of reading+0.3 m/s) for under 20 m/s
±(3% of reading+0.3 m/s) for above 20 m/s
Air Temperature Range
-20~60℃
Air Temperature Resolution
0.1℃, 0.1℉
Air Temperature Accuracy
±0.6℃
Temperature Response Time
60 seconds (typical)
LCD Update
Every second
Air Volume Display
0~99999 m3/minute
Air Volume Resolution
0.1 (0~9999.9) or 1 (10000~99999)
LCD Size
54(L) * 32.5(W) mm
Operating Temperature
0~50℃
Operating RH%
Humidity ＜80%
Storage Temperature
-10~50℃
Storage RH%
Humidity ＜90%
Meter Size
269(L)* 106(W) * 51(H) mm
Weight
~200g
Battery
AAA*4 PCS
Standard Package
Meter, Batteries, Manual, Hard Carry Case
Optional Accessory
Airflow Cone (W/soft Carry Case)
Youtube :
FAQ :
【FAQ of AZ 8916 Vane Anemometer (Temp.)】
Q1: Why is the 10cm large vane of the AZ 8916 better than small ones?
A1: The 10cm large vane covers a wider area to average out air turbulence, providing more stable and accurate readings. Its larger surface also increases sensitivity to low-speed airflows that smaller anemometers often fail to detect.
Q2: Can the AZ 8916 measure air volume (CMM/CFM) directly?
A2: Yes. The 8916's 10cm head is specifically designed to fit with the optional AZ 8916RNL Airflow cone (flow hoods).
This allows for direct, precise air volume measurement at diffusers and grilles, eliminating the need for complex manual calculations.
Q3: Why is my AZ 8916 anemometer non-calibratable if the readings are significantly off after long time?
A3: If readings are highly inaccurate after using a long time, the vanes, shaft, or bearings may be physically deformed or worn.
Since these hardware damages alter the linear response of the AZ 8916 anemometer, software calibration cannot restore factory precision.
In such cases, we recommend replacing the unit to ensure safety and measurement integrity.
