86504 AZ
Benchtop pH Conductivity Meter Kit
Welcome to check the Features, Application, Specification, YouTube of 86504 AZ Benchtop Water Quality Meter - pH/ORP/Electrical Conductivity (EC) as follows
Features :
AZ 86504 Benchtop pH & Conductivity Meter with Full Kit is developed under high-quality manufacturing processes to ensure reliability and safety:
ISO 9001 Facility: Manufactured in an ISO 9001 certified environment.
CE EN 61326-1: Designed and tested to meet European EMC safety standards.
RoHS & REACH Compliant: We provide a Manufacturer’s Self Declaration, ensuring the product meets environmental safety standards for hazardous substances.
86504 AZ Bench Top Water Quality Meter - pH/ORP/
Conductivity features:
* Multi Display pH, mV, ORP, Conductivity & temperature
* Automatic buffer recognition to avoid errors during calibration
* Maximum 5 points calibration points for pH Benchtop meters
* Hold function to freeze the record
* Max./Min. review of memorized data
* Reliable and replaceable probe with temperature compensation
* Auto or manual temperature compensation
* Convenient to view calibration information of probe
* "Ready" icon on LCD indicates the reading is stable
* 99 memories and could be downloaded to PC for analysis
* Collect data via RS232 interface by linking with PC
* Analog output for chart recorders
* Durable electrode holder for left & right side placement
* Auto or manual range for conductivity measurement
Application :
Application of 86504 AZ Bench Top Water Quality Meter - pH/ORP/ Conductivity:

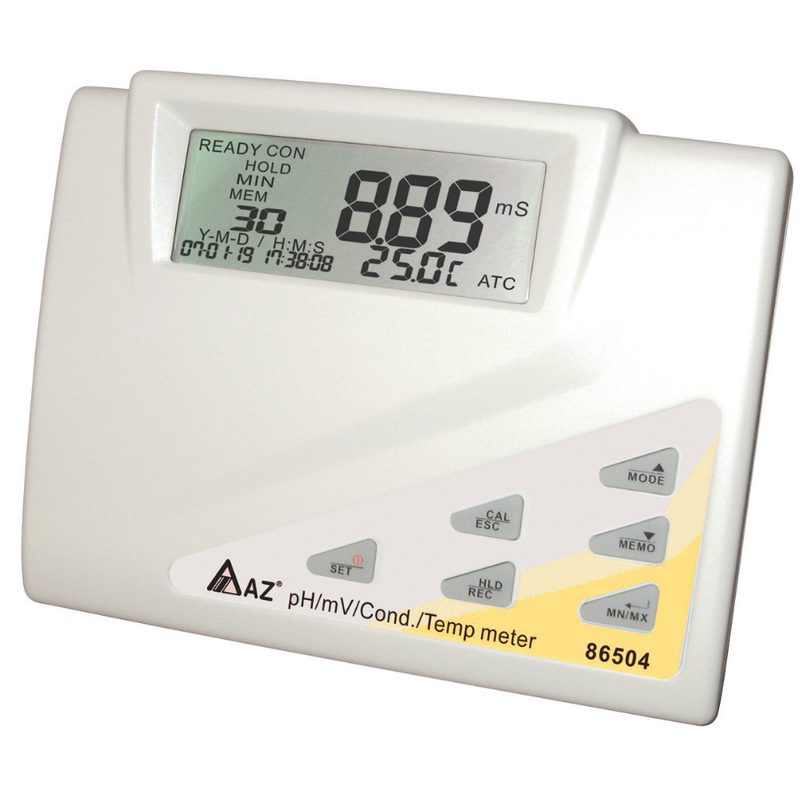

The 86504 AZ Benchtop Electrical Conductivity EC & pH & ORP Meter can measure the
pH, ORP (mV) and Conductivity. The big LCD screen could be multi display.
There is a drawer built-in the bottom of the 86504 AZ
Combo Bench Top Water Quality Meter, which could let user to store
testing data, exam result, memorandum or important notes in the drawer. That
would be more convenient for any professional study and research in lab.

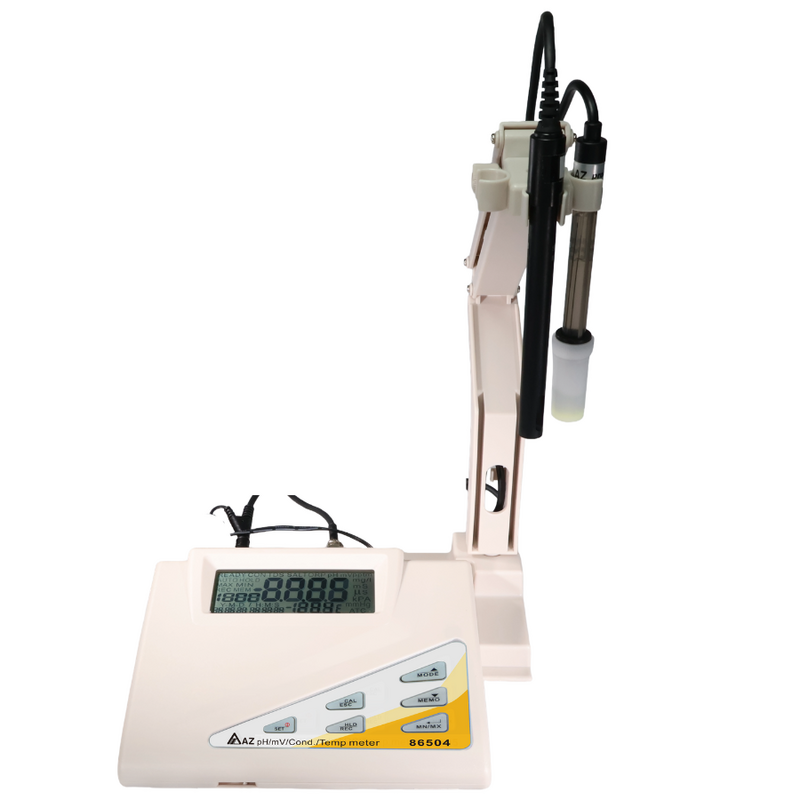

The holder of 86504 AZ Combo Bench Top Water Quality
Meter could be fixed either on the right side or the left side of the
meter, that design is friendly for different operation.

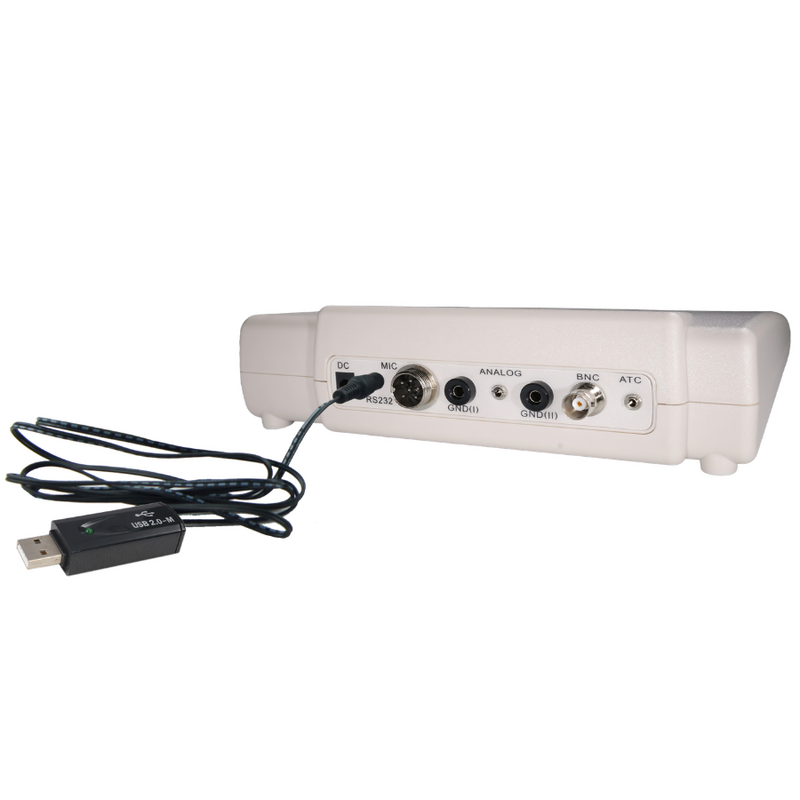

The pH and ORP measurement, the sensor electrode should be connected to the
BNC port, and the Conductivity measurement, the
sensor electrode should be connected to the MIC port.
We provide the following different pH probe could be operated with
86504 AZ Combo Bench Top Water Quality Meter,
Model No.
Description
VZ86P3AZ
ATC pH probe
VZ86P2AZ
pH probe without ATC function
VZ86P4AZ
pH probe for Low Ion Strength without ATC function
VZ86P6AZ
Full glass pH probe without ATC function
VZ86P7AZ
Sharp tip pH probe without ATC function
VZ86P1AZ
Flat surface pH probe without ATC function
User could connect the 86504 AZ Combo Bench Top Water
Quality Meter to PC via RS232 cable to upload the real time measurement
values and memories for further analysis.
If user need, the 86504 AZ Combo Bench Top Water
Quality Meter also could connect to the chart recorder or other data
collection devices via its ANALOG port.
The 86504 AZ Combo Bench Top Water Quality Meter
could be the best tool for all professional measuring purposes, including the
LAB, water treatment business, Aquaculture, Aqua farm, swimming pool or other
related industry.
86504 AZ Combo Bench Top Water Quality Meter
was being designed and manufactured by AZ Instrument, a well experienced
manufacturer for Environmental Measuring Instrument.
Specification :
Specification of 86504 AZ Bench Top Water Quality Meter - pH/ORP/ Conductivity:
| Model | 86504 |
| pH Measuring Range | 0.00~14.00 |
| pH Resolution | 0.01 |
| pH Accuracy | ±0.02 |
| mV Measuring Range | ±1999 mV |
| mV Resolution | ±0.1 mV (-199.9~199.9 mV) or ±1 mV (others) |
| mV Accuracy | ±0.2 mV (-199.9~199.9 mV) or ±2 mV (others) |
| Conductivity Measuring Range | 0~19.99, 0~199.9, 0~1999 us/cm 0~19.99, 0~199.9 ms/cm |
| Conductivity Resolution | 0.05% of Full Scale |
| Conductivity Accuracy | ±1% F.S ±1 digit |
| Temperature Measuring Range | 0~80.0℃ |
| Temperature coefficient | 0~10.0%/℃ |
| Temperature Resolution | 0.1 |
| Temperature Accuracy | ±0.5℃ |
| Compatible Probe | pH probe (86P3, 86P2, 86P4, 86P6, 86P7, 86P1) ORP probe (850P, 86P5) and Conductivity Probe (830P) |
| LCD Size | 105(L) * 40(W) mm |
| Operating Temperature | 0~50℃ |
| Operating RH% | Humidity ＜80% |
| Storage Temperature | -20~60℃ |
| Storage RH% | Humidity ＜90% |
| Meter Size | 260(L) * 168(W) * 58(H) mm |
| Weight | ~150g |
| Battery | 9V Adaptor |
| Standard Package | Meter, USA Plug Type Adaptor, Manual, Probe, Solution, Cable, Software CD, Probe Stand, Paper Box |
Youtube :
Welcome to learn more about the 86504 AZ Bench Top Water Quality Meter - pH/ORP/ Conductivity from the following product introduction video via YouTube.
FAQ :
【FAQ of AZ 86504 Affordable Benchtop pH & Conductivity Meter with Full Kit 】
Q1: What is included in the standard package?
A: The meter is supplied as a complete kit, including measurement pH and conductivity probes and necessary accessories, allowing immediate use without additional purchases.
Q2: Does this meter support GLP compliance?
A: No. This model is designed for routine testing and education use, focusing on essential functions and cost efficiency rather than GLP documentation.
Q3: Does this meter provide analog output?
A: Yes. The AZ 86504 benchtop pH & Conductivity meter features an analog output interface, allowing connection to external chart recorders or data acquisition systems for real-time signal monitoring and recording.
