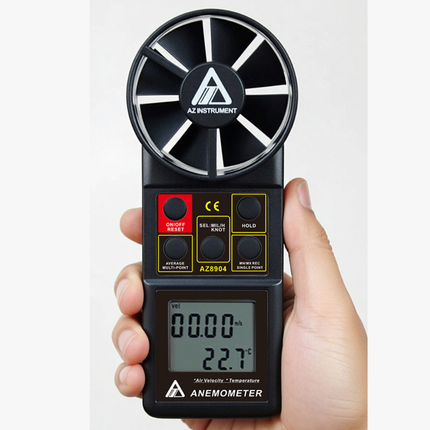

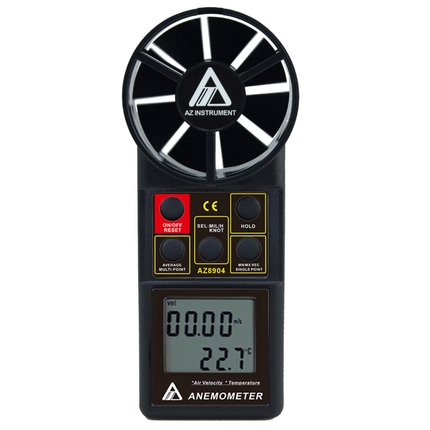

8904 AZ
Multi-Point Anemometer
Welcome to check the Features, Application, Specificatio, YouTube of AZ 8904 Handheld Wind Velocity Temperature Meter with PC link as follows
Features
The AZ 8904 Multi-Point Anemometer is developed under high-quality manufacturing processes to ensure reliability and safety:
ISO 9001 Facility: Manufactured in an ISO 9001 certified environment.
CE EN 61326-1 & IEC 61000: Designed and tested to meet European EMC safety standards.
RoHS & REACH Compliant: We provide a Manufacturer’s Self Declaration, ensuring the product meets environmental safety standards for hazardous substances.
AZ 8904 Handheld Air Flow Meter features:

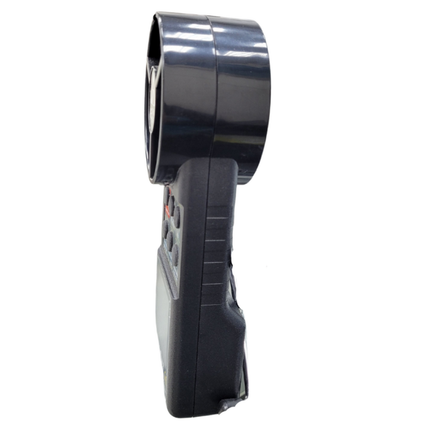

* Fashion design with one hand operation
* Integral fan with temperature sensor built-in
* Measures air velocity & temperature
* Wind speed metric and imperial units selectable
* Temp. Units C/F selectable
* Display max. / min. / avg. value
* Hold function to freeze current readings
* Auto power off in 20 mins inactivity to save power
* Sleep and non-sleep mode selectable
* LCD display flash as low battery indicator
* Features 8 points velocity average
ISO 9001 Facility: Manufactured in an ISO 9001 certified environment.
CE EN 61326-1 & IEC 61000: Designed and tested to meet European EMC safety standards.
RoHS & REACH Compliant: We provide a Manufacturer’s Self Declaration, ensuring the product meets environmental safety standards for hazardous substances.
AZ 8904 Handheld Air Flow Meter features:
* Fashion design with one hand operation
* Integral fan with temperature sensor built-in
* Measures air velocity & temperature
* Wind speed metric and imperial units selectable
* Temp. Units C/F selectable
* Display max. / min. / avg. value
* Hold function to freeze current readings
* Auto power off in 20 mins inactivity to save power
* Sleep and non-sleep mode selectable
* LCD display flash as low battery indicator
* Features 8 points velocity average
Application
Application of 8904 AZ air flow measuring devices:
The 8904 AZ wind speed meter has the integral fan to measure the Air Speed, Air Velocity and Temperature. The meter features versatile functions, use it to check air velocity FPM (Feet per minute) in residential, light commercial and standard commercial systems.
The 8904 AZ Anemometer has many user-friendly features, all the features are accessible through the keypads. It could be the best choice as the wind speed monitoring device in HVAC (Heating, Ventilation, Refrigerating and Air Conditioning) or industrial related application.
The 8904 AZ Anemometer was being designed and manufactured by AZ Instrument, a well experienced manufacturer for Environmental Measuring Instrument.
The 8904 AZ wind speed meter has the integral fan to measure the Air Speed, Air Velocity and Temperature. The meter features versatile functions, use it to check air velocity FPM (Feet per minute) in residential, light commercial and standard commercial systems.
The 8904 AZ Anemometer has many user-friendly features, all the features are accessible through the keypads. It could be the best choice as the wind speed monitoring device in HVAC (Heating, Ventilation, Refrigerating and Air Conditioning) or industrial related application.
The 8904 AZ Anemometer was being designed and manufactured by AZ Instrument, a well experienced manufacturer for Environmental Measuring Instrument.
Specification
Specification of 8904 Handheld Anemometer:
| Model | 8904 |
| Wind Speed Range | 0.4~30 m/s; 80~5900 ftm |
| Wind Speed Accuracy | ±(2% of reading+0.2 m/s) |
| Air Temperature Range | -10~50.0℃ |
| Air Temperature Resolution | 0.1℃, 0.1℉ |
| Air Temperature Accuracy | ±1℃ |
| Wind Speed Unit (m/s) | YES |
| Wind Speed Unit (ft/m) | YES |
| Wind Speed Unit (KM/H) | YES |
| Wind Speed Unit (MPH) | YES |
| Wind Speed Unit (knot) | YES |
| Temperature Response Time | 60 seconds (typical) |
| LCD Update | Every second |
| LCD Size | 40(L) * 34(W) mm |
| Operating Temperature | 0~50℃ |
| Operating RH% | Humidity ＜80% |
| Storage Temperature | -10~50℃ |
| Storage RH% | Humidity ＜90% |
| PC Link | YES |
| 8 Pints Velocity Average | YES |
| Battery Life | 100 Hours |
| Size | Meter: 183(L) * 76(W)* 45(H) mm Impeller: 70 mm |
| Weight | ~150g |
| Battery | 9V Battery *1 PC |
| Optional Accessory | Software Kit |
| Standard Package | Meter, Battery, Manual, Hard Carry Case |
Youtube
FAQ
【FAQ of AZ 8904 Multi-Point Anemometer】
Q1: How does the AZ 8904 improve measurement accuracy?
A: It features an 8-point average function, allowing you to sample multiple spots across a large vent for a more representative and accurate airflow reading than single-point meters.
Q2: What are the benefits of the real-time data output feature?

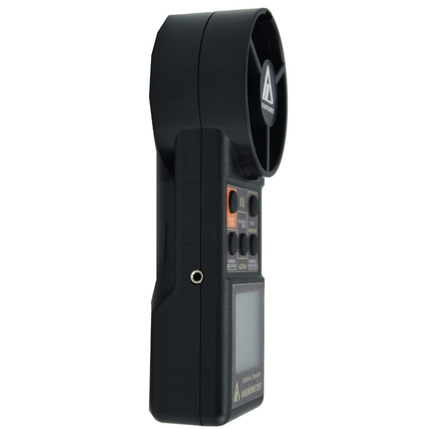

A: Via its RS232 interface, you can stream live data directly to a PC for instant monitoring and long-term logging, ensuring precise documentation of airflow trends without manual recording.
Q3: Why use a vane anemometer instead of other types?
A: Its large sensor head averages turbulent air for more stable readings. It is also more durable and resistant to dust than hot-wire sensors, making it the most reliable choice for HVAC vents and industrial exhausts.
