88160 AZ EB
USB Temp Data Logger
Features
ISO 9001 Facility: Manufactured in an ISO 9001 certified environment.
CE EN 61326-1: Designed and tested to meet European EMC safety standards.
RoHS & REACH Compliant: We provide a Manufacturer’s Self Declaration, ensuring the product meets environmental safety standards for hazardous substances.

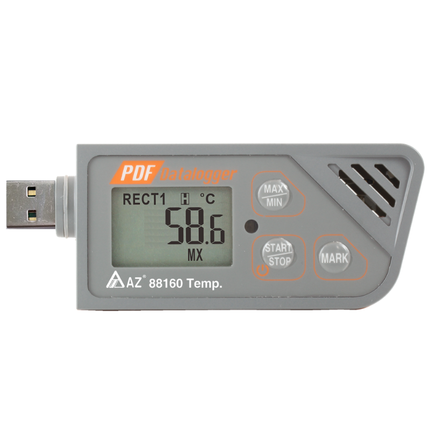

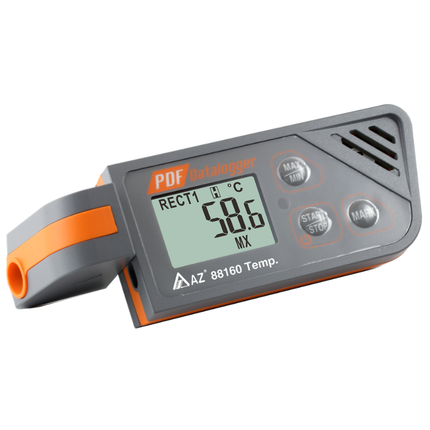

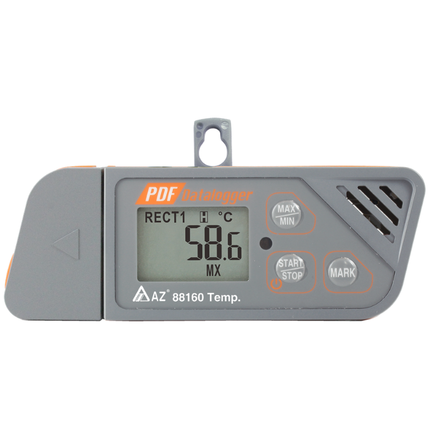

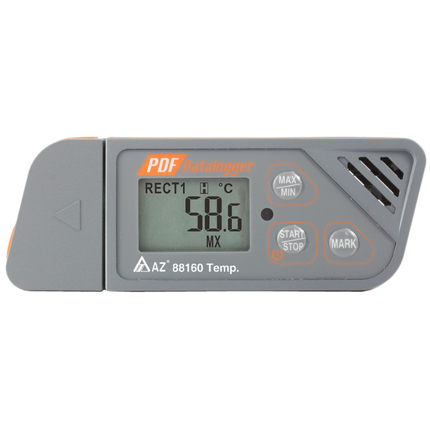

AZ 88160 Temperature USB Data logger features:
* Plug & Play temperature data logger with USB 2.0 connector
* Software & driver are not required for any operation
* Automatically generate a PDF and Excel report while plugged into computer
* High accuracy thermistor sensor
* Completely programmable by users for maximum flexibility includes: 6 languages, sampling interval, start delay, alarm delay, unit, alarm range, alarm type, password and user name
* Compact, light and IP67
* Big LCD provides excellent viewing experience
* Count key to review max. & min value of logged data
* Dual color LED provides instant status indicator: REC and High/Low temperature
* Large memory capacity, 48000 readings.
* Powered by 2pcs CR2032 battery, easy replacement.
* Mark key to provide 8 marking during transition period
* PDF file contains summary, graph and detailed data list
* EN12830 and RoHS compliance
Fully programmable 88160 USB temperature recorder: customize sampling intervals, alarm delays, and passwords easily. Compact design with large LCD for instant status tracking.
Application
Application of 88160 AZ Temperature Data Recorder:
The 88160 AZ USB Temperature Data Logger can measure and record the Temperature value. The 88160 AZ Data logger can export the report with Excel or PDF format depended on the User’s purpose.
The 88160 AZ USB Temperature Logger can plug into PC easily, which would not need to install any software in advance. Welcome to learn more about the 88160 AZ Logger operation procedures from the following YouTube in the end of page.
The 88160 AZ Temperature Data Logger could be used for the warehouse, work space, laboratories, basement, wine cellar, aircraft cabins, refrigerate truck (cold chain logistic), storage containers in food transport/ logistic / processing, incubation process, hatcheries, art galleries, museum, HVAC field or other controlled environment.
It can be met with the formal tracking purpose of the transportation especially for Pharmaceutical industry, hospital, lab, factory or other industrial environment. It could be best tool for quality control requirement.
The 88160 AZ Temperature Data Recorder was being designed and manufactured by AZ Instrument, a well experienced manufacturer for Environmental Measuring Instrument.
Specification
Specification of 88160 AZ Temperature Data Recorder:
| Model | 88160 |
| Temperature Range | NTC Thermistor, -30~70°C, -22~158°F |
| Temperature Resolution | 0.1°C , 0.1°F |
| Temperature Accuracy | ±0.5°C |
| Sampling Points | 48000 readings |
| Operating Temperature | -30~70°C (Logging Status); Room Temp. (PC Mode) |
| Operating RH% | Humidity < 90% |
| Storage Temperature | -40~85°C |
| Storage RH% | Humidity < 90% |
| Battery | 2PCS 3.0V CR2032 9 months life time while alarm function is OFF 3 months life time while alarm function is ON |
| Sampling Interval | 30 seconds, 5, 10, 30, 60, 90, 120 minutes |
| Start Delay | 0, 5, 30, 45, 60, 90, 120 minutes and 24 hours |
| Alarm Range | Programmable from -30 to 70°C |
| Alarm Delay | 0, 5, 30, 45, 60, 90, 120 minutes |
| Alarm Type | Single Event, Cumulative, Disable |
| Operation Keys | 3 Keys (Start/Stop Key & Mark Key & Count Key) |
| LED Indicator | REC, High / Low Alarm |
| Standard Package | Logger, Batteries, Manual, Paper Box |
| Weight | ~50g |
| Meter Size | 110(L) * 45(W) * 17(H) mm |
Youtube
Welcome to learn more about the 88160 AZ USB temp Data Logger w/PDF report from the following product introduction video via YouTube.
Other 3
【FAQ of AZ 88160 USB Temp Data Logger】
Q1: Does AZ 88160 require software installation?
A1: No. AZ 88160 works as a USB flash drive and automatically generates PDF and CSV temperature reports when plugged into a computer
Q2: What temperature range does AZ 88160 support?
A2: AZ 88160 measures from -30°C to +70°C, making it suitable for refrigerators, freezers, cold rooms, and transportation monitoring.
Q3: What industries use AZ 88160?
A3: It is widely used in cold chain logistics, pharmaceuticals, food safety, laboratories, and medical storage to verify temperature compliance.
