88161 AZ EB
USB Temp Logger with Probe
Features
AZ 88161 Dual Temperature USB Data logging Device features:
* Plug & Play temperature data logger with USB 2.0 connector
* Software & driver are not required for any operation
*Automatically generate a PDF and Excel report while plugged into computer
* High accuracy thermistor sensor
* Completely programmable by users for maximum flexibility includes: 6 languages, sampling interval, start delay, alarm delay, unit, alarm range, alarm type, password and user name
* Compact, light and IP 67
* Big LCD provides excellent viewing experience
* Count key to review max. & min value of logged data
* Dual color LED provides instant status indicator: REC and High/Low temperature
* Large memory capacity, 48000 readings.
* Powered by 2 pcs CR2032 battery, easy replacement.
* Mark key to provide 8 marking during transition period
* PDF file contains summary, graph and detailed data list
* EN12830 and RoHS compliance
* Excellent tool as the temperature USB data acquisition device
Monitor temperatures with the AZ 88161 USB data logger. Features an external probe, IP67 protection, and auto-generated PDF/Excel reports without software.
Application
Application of 88161 AZ Temperature Data Recorder with External Temperature Sensor:
The 88161 AZ device could attach the external temperature probe, which could insert to the container or other measuring object.
The 88161 AZ USB Temperature Data Logging Devices can show the dual temperature values, including the air temperature and the logger can export the report with Excel or PDF format.
The 88161 AZ USB temperature logger can plug into PC easily, which would not need to install any software in advance. Welcome to learn more about the 88161 AZ logger operation procedures from the following YouTube link.
The 88161 AZ temperature Data Logger could be used for the warehouse, work space, laboratories, basement, wine cellar, aircraft cabins, refrigerate truck (cold chain logistic), storage containers in food transport/ logistic / processing, incubation process, hatcheries, art galleries, museum, HVAC field or other controlled environment.
It can be met with the formal tracking purpose of the transportation especially for Pharmaceutical industry, hospital, lab, factory or other industrial environment. It could be best tool for quality control requirement.
The 88161 AZ Temperature Data Recorder was being designed and manufactured by AZ Instrument, a well experienced manufacturer of Thermometer Data Logger Company.
Specification
Specific of 88161 AZ Temperature Data Recorder:
| Model | 88161 |
| Temperature Range | NTC Thermistor, -30~70℃, -22~158℉ |
| Temperature Resolution | 0.1℃, 0.1℉ |
| Temperature Accuracy | ±0.5℃ |
| External temperature Range | NTC Thermistor,-30~70℃, -22~158℉ |
| External temperature Resolution | 0.1℃, 0.1℉ |
| External temperature Accuracy | ±0.5℃ |
| Sampling Points | 24000 Int. and 24000 Ext. readings |
| Operating Temperature | -30℃~70℃ (Logging Status); Room Temp. (PC Mode) |
| Operating RH% | Humidity ＜90% |
| Storage Temperature | -40~85℃ |
| Storage RH% | >Humidity ＜90% |
| Battery | 2PCS 3.0V CR2032 9 months life time while alarm function is OFF 3 months life time while alarm function is ON |
| Sampling Interval | 30 seconds, 5, 10, 30, 60, 90, 120 minutes |
| Start Delay | 0, 5, 30, 45, 60, 90, 120 minutes and 24 hours |
| Alarm Range | Programmable from -30 to 70℃ |
| Alarm Delay | 0, 5, 30, 45, 60, 90, 120 minutes |
| Alarm Type | Single Event, Cumulative, Disable |
| Operation Keys | 3 Keys (Start/Stop Key & Mark Key & Count Key) |
| LED Indicator | REC, High / Low Alarm |
| Standard Package | Logger, Batteries, Manual, Paper Box |
| Optional Accessory | VZ87P6AZ1 or VZ87P6AZ2 external temperature probe (for 88161 only) |
| Weight | ~50g |
| Meter Size | 110(L) * 45(W) * 17(H) mm |
Youtube
Welcome to learn more about the 88161 AZ USB temp Data Logger with External Thermistor Probe w/PDF report from the following product introduction video via YouTube.
AZ 88161 Dual Temperature USB Data logger Unboxing Video
Other 3
【FAQ of AZ 88161 USB Temp Logger with Probe】
Q1: Does AZ 88161 have two probes?A1: No. The AZ 88161 has one built-in temperature sensor and one external probe for measuring product or container temperature
Q2: What is the external probe used for?

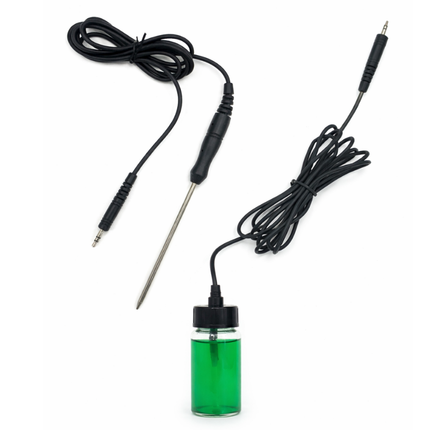

A2: The probe is used to measure temperature inside packages, liquids, refrigerators or insulated containers where the built-in sensor cannot reach. AZ offers two probe options: 87P6AZ1 for insertion into products or liquids, and 87P6AZ2 for measuring air temperature inside refrigerators, cold rooms, or storage areas
Q3: Why use a glycol bottle with AZ 88161?
A3: A glycol bottle simulates the thermal mass of real products such as vaccines or medicines, preventing false temperature spikes caused by refrigerator door openings and providing true product temperature records
