88162 AZ EB

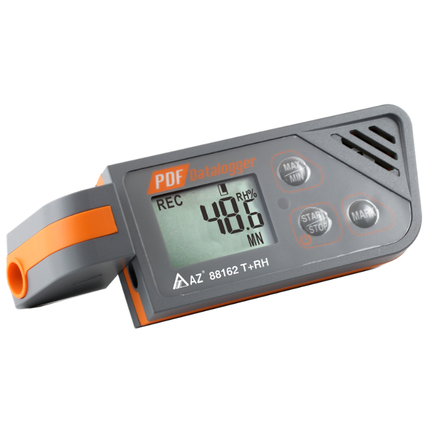

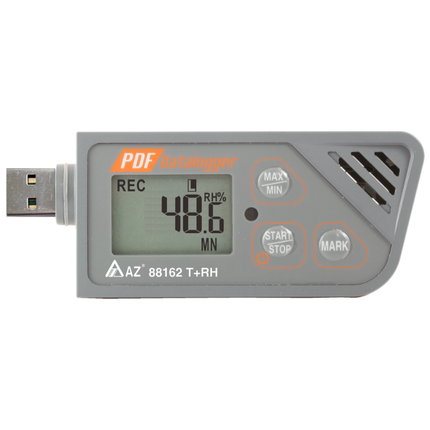

Professional Temp & RH Logger
Features
* USB 2.0 connector
* Software & driver are not required for any operation
* Automatically generate a PDF and Excel report while plugged into computer
* High accuracy thermistor sensor
* Completely programmable by users for maximum flexibility includes: 6 languages, sampling interval, start delay, alarm delay, unit, alarm range, alarm type, password and user name
* Compact, light and IP65 (not include sensor area)
* Big LCD provides excellent viewing experience
* Count key to review max. & min value of logged data
* Dual color LED provides instant status indicator: REC and High/Low temperature
* Large memory capacity, 24000 Temp. & 24000% RH points
* Powered by 2 pcs CR 2032 battery, easy replacement.
* Mark key to provide 8 marking during transition period
* PDF file contains summary, graph and detailed data list
* EN12830 and RoHS compliance
Monitor temp & RH with AZ 88162 USB Data Logger. Features auto PDF/Excel reports, IP65 waterproof, and 24,000 points memory—no software needed!
Application
Application of 88162 AZ Humidity and Temperature
Data logger:
The 88162 AZ Digital USB interface Data Logger
can measure and record the Humidity and Temperature value. It can export the
report with Excel or PDF format depended on the User’s purpose.
The 88162 AZ USB Temperature & RH Recorder
can plug into PC easily, which would not need to install any software in
advance. Welcome to learn more about the 88162 AZ Data
Logger operation procedures from the following YouTube in the end of
page.
The 88162 AZ USB Data Logger could be used for the warehouse, work space, laboratories, basement, wine cellar, aircraft cabins, refrigerate truck (cold chain logistic), storage containers in food transport/ logistic / processing, incubation process, hatcheries, art galleries, museum, HVAC field or other controlled environment.
It can be met with the formal tracking purpose of the transportation especially for Pharmaceutical industry, hospital, lab, factory or other industrial environment. It could be best tool for quality control requirement.
The 88162 AZ Humidity and Temperature Data logger was being designed and manufactured by AZ Instrument, a well experienced manufacturer for Environmental Measuring Instrument.
Specification
Specification of 88162 AZ Humidity and Temperature Data logger:
Model
88162
Temperature Range
NTC Thermistor, -30~70℃, -22~158℉
Temperature Resolution
0.1℃, 0.1℉
Temperature Accuracy
±0.5℃
Humidity Range
Capacitor, 0.1~99.9% RH
Humidity Resolution
0.1% RH
Humidity Accuracy
±3% (at 25℃. 10~90%), others ±5%
Sampling Points
24K:T & 24K:RH
Operating Temperature
-30~70℃ (Logging Status); Room Temp. (PC Mode)
Operating RH%
Humidity ＜90%
Storage Temperature
-40~85℃
Storage RH%
Humidity ＜90%
Battery
2PC 3.0V CR2032
9 months life time while alarm function is OFF
3 months life time while alarm function is ON
Sampling Interval
30 seconds, 5, 10, 30, 60, 90, 120 minutes
Start Delay
0, 5, 30, 45, 60, 90, 120 minutes and 24 hours
Alarm Range
Programmable from -30 to 70℃
Alarm Delay
0, 5, 30, 45, 60, 90, 120 minutes
Alarm Type
Single Event, Cumulative, Disable
Operation Keys
3 Keys (Start/Stop Key & Mark Key & Count Key)
LED Indicator
REC, High /Low Alarm
Standard Package
Logger, Batteries, Manual, Paper Box
Weight
~50g
Meter Size
110 (L) * 45 (W) * 17 (H) mm
Youtube
Welcome to learn more about the 88162 AZ USB Temp RH Data Logger w/PDF report from the following product introduction video via YouTube.
Other 3
【FAQ of AZ 88162 Professional Temp & RH Logger】
Q1: What makes AZ 88162 different from typical USB humidity loggers?
A1: Unlike IC-based humidity loggers, the AZ 88162 uses a large-area analog capacitive humidity sensor that directly measures moisture changes with higher stability and long-term accuracy.
Q2: Why is a large-area analog humidity sensor more reliable?
A2: A larger sensing polymer interacts with more water molecules, producing a stronger signal with less noise and drift. This ensures stable readings, especially in high-humidity and cold-chain environments
Q3: What applications is AZ 88162 designed for?
A3: The AZ 88162 is designed for pharmaceutical storage, cold chain, laboratories, warehouses, and any environment where precise and reliable temperature and humidity records are required.
