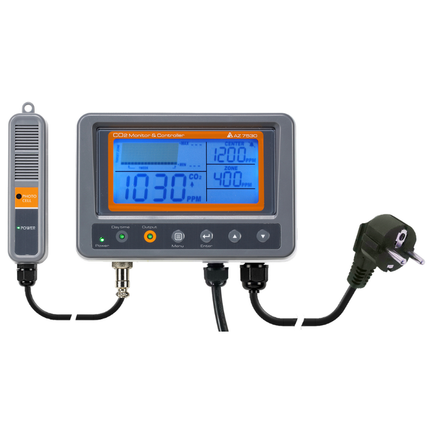

7530 AZ EB
CO2 Controller with Relay
Features
The 7530 AZ CO2 Controller with Relay is developed under high-quality manufacturing processes to ensure reliability and safety:
ISO 9001 Facility: Manufactured in an ISO 9001 certified environment.
CE EN 61326-1 & IEC 61000: Designed and tested to meet European EMC safety standards.
RoHS & REACH Compliant: We provide a Manufacturer’s Self Declaration, ensuring the product meets environmental safety standards for hazardous substances.
7530 AZ CO2 Controller features:
* Accurate 2-Channel low drift NDIR CO2 measuring
* Programmable CO2 zone value & CO2 center value to control output power on/off
* External CO2 sensor to be used in closed space
* Display real time CO2 value
* Display CO2 chart with variable time zoom levels
* Max. /Min. recall function
* Audible alarm warns CO2 concentration
* Target zone indicator
* Built-in Day/Night auto detection to override CO2 control
* Monitoring & Controlling CO2 value in Green house, residential and commercial building
* CO2 concentration alarms
ISO 9001 Facility: Manufactured in an ISO 9001 certified environment.
CE EN 61326-1 & IEC 61000: Designed and tested to meet European EMC safety standards.
RoHS & REACH Compliant: We provide a Manufacturer’s Self Declaration, ensuring the product meets environmental safety standards for hazardous substances.
7530 AZ CO2 Controller features:
* Accurate 2-Channel low drift NDIR CO2 measuring
* Programmable CO2 zone value & CO2 center value to control output power on/off
* External CO2 sensor to be used in closed space
* Display real time CO2 value
* Display CO2 chart with variable time zoom levels
* Max. /Min. recall function
* Audible alarm warns CO2 concentration
* Target zone indicator
* Built-in Day/Night auto detection to override CO2 control
* Monitoring & Controlling CO2 value in Green house, residential and commercial building
* CO2 concentration alarms
Application
Application of 7530 AZ CO2 Analyzer Controller:
The 7530 AZ CO2 Controller has the big LCD, which could show the CO2 concentration value with chart, so the 7530 AZ could be used for the CO2 monitor for the indoor air quality and green house CO2 measurement. It could be also operated and met with all work space, office, hospital, school, station, residential, commercial building or home usage.
The 7530 AZ CO2 meter also can control the related instruments easily by two models, including the plant and human models, which could be override the controlling in low or high CO2 concentration.
An external CO2 sensing probe of 7530 AZ CO2 Controller is included to help user measure CO2 level in a closed space, the cable is 4.5 meter long to extend your measure spot 4.5 meter away from display.
The 7530 AZ CO2 controller could control the other connected devices, such as CO2 generator or ventilation fan. It could be used for the horticulture, greenhouse, hydroponics, organic indoor gardening, mushroom farm and lightening industry.
The 7530 AZ CO2 Controller was being designed and manufactured by AZ Instrument, a well experienced manufacturer of CO2 Controller.
The 7530 AZ CO2 Controller has the big LCD, which could show the CO2 concentration value with chart, so the 7530 AZ could be used for the CO2 monitor for the indoor air quality and green house CO2 measurement. It could be also operated and met with all work space, office, hospital, school, station, residential, commercial building or home usage.
The 7530 AZ CO2 meter also can control the related instruments easily by two models, including the plant and human models, which could be override the controlling in low or high CO2 concentration.
An external CO2 sensing probe of 7530 AZ CO2 Controller is included to help user measure CO2 level in a closed space, the cable is 4.5 meter long to extend your measure spot 4.5 meter away from display.
The 7530 AZ CO2 controller could control the other connected devices, such as CO2 generator or ventilation fan. It could be used for the horticulture, greenhouse, hydroponics, organic indoor gardening, mushroom farm and lightening industry.
The 7530 AZ CO2 Controller was being designed and manufactured by AZ Instrument, a well experienced manufacturer of CO2 Controller.
Specification
Specification of 7530 AZ CO2 Controller:
| Model | 7530 |
| CO2 Range | 0~5000 ppm |
| CO2 Resolution | 1 ppm (0~1000 ppm); 5 ppm (1000~2000 ppm) ; 10 ppm (＞2000 ppm) |
| CO2 Accuracy (below 3000 ppm) |
±50 ppm or ±5% of reading, whichever is greater |
| CO2 Accuracy (above 3000 ppm) |
±7% of reading |
| Warm-up Time | 30 Seconds |
| CO2 Response Time | ＜2 min for 63% of step change or ＜4.6min for 90% step change |
| LCD Size | 104(L) * 47(W) mm |
| Meter Size | 158(L) * 106(W) * 50(H) mm |
| Sensor Size | 124(L) * 33(W) * 26(H) mm |
| Operating Temperature | 0~50℃ |
| Operating RH% | 5~95% RH (avoid condensation) |
| Storage Temperature | -20~60℃ |
| Storage RH% | 5~95% RH (avoid condensation) |
| Power Supply | AC 100~240 VAC |
| Piggyback socket load | 5A@250VAC; 10A@120VAC |
| Weight | ~700g |
| Standard Package | Sensor Unit, Monitor & Controller Unit, Manual, Screws |
| Picture |     |
Youtube
7530 AZ CO2 Controller Unboxing Video
AZ CO2 meters are your reliable choices to measure CO2 in the air
FAQ
【FAQ of AZ 77294 CO2 7530 AZ CO2 Controller NDIR Monitor with Relay Control】
Q1: Which plug types are available for the 7530 CO2 Controller?
A: To ensure global compatibility, the 7530 AZ is available in four regional plug and socket versions: USA, EU Schuko, EU France, and UK version. This allows users to connect local CO2 equipment without additional adapters.
Q2: How does the "Day/Night" mode save on CO2 costs?
A: The built-in photo-cell sensor detects light levels. In Plant Mode, it automatically stops CO2 release during the night when plants do not perform photosynthesis, preventing gas waste and optimizing growth cycles.
Q3: What devices can I connect to the 7530 relay output?
A: The integrated relay socket supports devices up to 5A/250VAC or 10A/120VAC, making it compatible with most CO2 generators, regulators, solenoid valves, and ventilation fans for automated climate control.
