7755 AZ
NDIR CO2 Temp RH Meter
Features
ISO 9001 Facility: Manufactured in an ISO 9001 certified environment.
CE EN 61326-1: Designed and tested to meet European EMC safety standards.
CE EN 50543: Designed to meet EN 50543 requirements for portable CO2 detection and safety monitoring.
RoHS & REACH Compliant: We provide a Manufacturer's Self Declaration, ensuring the product meets environmental safety standards for hazardous substances.
7755 AZ CO2 Temp RH Meter features:
* Design with NDIR (Non-Dispersive Infrared) wave guide technology sensor

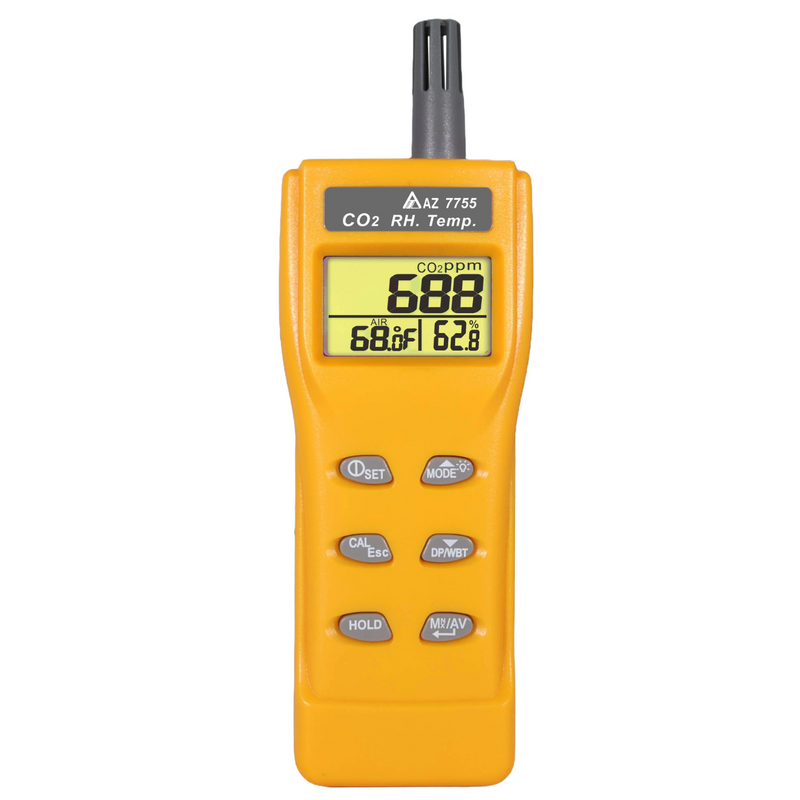

* Triple displays of CO2 level, temperature and humidity
* Data output to PC every 2 seconds for on-line analysis
* Display 8 hrs TWA value (time-weighted average) & 15 minutes STEL value (short-term exposure limit)

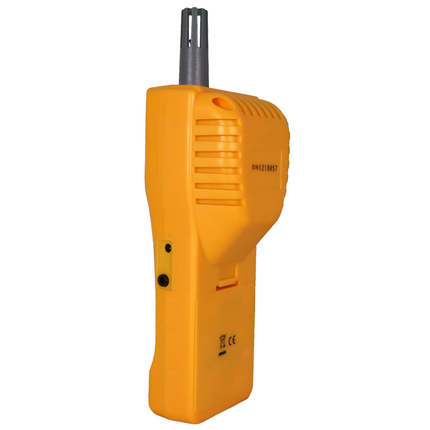

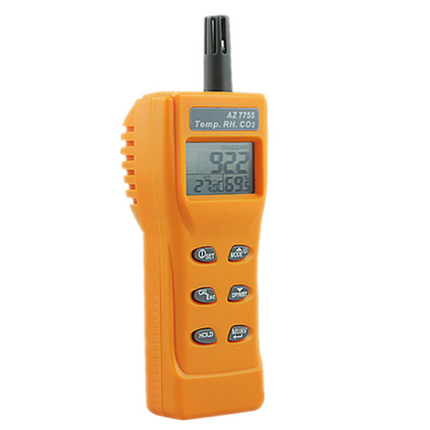

* Housing design surrounds with rails to help air ventilation for quick and accurate response
* Easy manual calibration on CO2 and humidity (with AZ salt bottle)
* Dual display 2 parameters simultaneously: CO2, temperature
* Audible carbon dioxide level warning alarm
* Big LCD display with high resolution
* Back light for working in dark area
* Battery and adaptor power supply
* PC connect via USB interface
Monitor IAQ with the 7755 AZ CO2 Meter featuring NDIR technology for precise carbon dioxide, temperature, and humidity readings. Includes TWA & STEL displays.
Application
Application of 7755 AZ CO2 Meter:
The 7755 AZ portable CO2 detector could measure the indoor air quality index, including the CO2 concentration, CO2 level, CO2 level, air temperature, dew point, wet bulb temperature and humidity. The Carbon Dioxide value can be output to PC for on-line analysis. The CO2 sensor can be calibrated easily in the fresh air, and the RH sensor could be calibrated with AZ 33%/75% salt bottle.
The 7755 AZ CO2 device could be used as the CO2 checker for the air quality index in all workspace, office, hospital, school, station or home. It can be calibrated easily in the fresh air and its back light function could let user operate in the dark area. The 7755 AZ is your best choice as the indoor air quality (IAQ) testers.
Poor indoor air quaintly is considered unhealthy because it causes tiredness, loss of ability to concentrate, and even illness (ex: sick building syndrome). IAQ monitoring and survey, especially on CO2 level and air ventilation become widely applied in public areas such as office, classroom, factory, hospital, work space, residential, commercial building and hotels. It is also suggested in regulations of industrial hygiene in some countries.
The 7755 AZ CO2 & Temperature & Relative Humidity Meter was being designed and manufactured by AZ Instrument, a well experienced manufacturer for Environmental Measuring Instrument.
Specification
Specification of 7755 AZ CO2 Meter:
| Model | 7755 |
| CO2 Range | 0~9999 ppm |
| CO2 Resolution | 1 ppm |
| CO2 Accuracy | 0~2000 ppm: ±50 ppm ±5% of reading, other range ±10% of reading |
| CO2 Response Time | ＜30 Seconds (90% step change) |
| CO2 Warm-up Time | 30 Seconds |
| Air Temperature Range | -10~60℃, 14~140℉ |
| Air Temperature Resolution | 0.1℃, 0.1℉ |
| Air Temperature Accuracy | ±0.6℃, ±0.9℉ |
| Air Temperature Response Time | ＜2 mins (90% step change) |
| Humidity Range | 0.1~99.9% RH |
| Humidity Resolution | 0.1% RH |
| Humidity Accuracy | ±3%RH (at 25℃, 10~90%RH); others ±5%RH |
| Humidity Response Time | ＜10 mins (90% step change) |
| LCD Size | 44(L) * 26(W) mm |
| Meter Size | 205(L) * 70(W) * 56(H) mm |
| IP Rating | IP40 |
| EMC | EN 50270:2015 |
| Operating Temperature | 0~50℃ |
| Operating RH% | 0~95% RH (avoid condensation) |
| Storage Temperature | -20~50℃ |
| Storage RH% | 0~90% RH (avoid condensation) |
| Power Supply | Alkaline AA * 4 PCS |
| Battery life | ＞ 24 hours (Alkaline Battery) |
| Weight | ~200g |
| Standard Package | Meter, Manual, Batteries, Hard Carry Case |
Youtube
Welcome to learn more about the AZ CO2 meter calibration procedure
AZ CO2 meters are your reliable choices to measure CO2 in the air
Other 3
【FAQ of AZ 7755 CO2 monitor】
Q1: Why is NDIR technology preferred for the AZ 7755 CO2 monitor?
A: NDIR (Non-Dispersive Infrared) technology is a "true" CO2 measurement method. It is highly specific to CO2 molecules, meaning it won't give false readings in the presence of perfumes, alcohol, or other cleaning chemicals, unlike cheap semiconductor-based IC sensors.
Q2: Does the AZ 7755 measure more than just CO2 levels?
A: Yes, it is a 3-in-1 environmental monitor. It simultaneously measures CO2 concentration, air temperature, and relative humidity, providing a more comprehensive overview of indoor air quality and thermal comfort for HVAC diagnostics.
Q3: Can this device calculate long-term exposure levels?
A: Yes, the device automatically calculates and displays TWA (8-hour Time Weighted Average) and STEL (15-minute Short-Term Exposure Limit) to help assess workplace safety.
