8855 AZ
Universal KJT RSE Meter (Single Input)
Welcome to check the Features, Application, Specification, YouTube of 8855 AZ Type K, J, T, R, S, E Thermocouple Thermometer-Single Input as follows
Features
AZ 8855 6-Type Thermocouple Meter, Maximum Compatibility is developed under high-quality manufacturing processes to ensure reliability and safety:
ISO 9001 Facility: Manufactured in an ISO 9001 certified environment.
CE EN 61326-1: Designed and tested to meet European EMC safety standards.
RoHS & REACH Compliant: We provide a Manufacturer’s Self Declaration, ensuring the product meets environmental safety standards for hazardous substances.

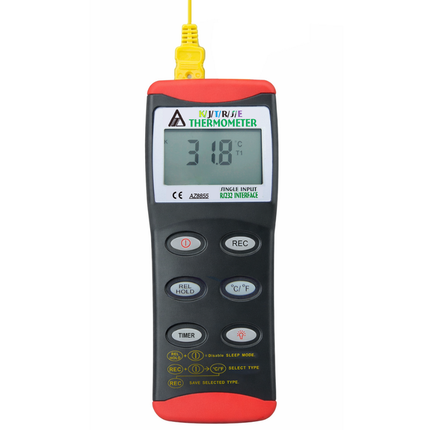

8855 K, J, T, R, S, E Thermocouple Thermometer features:
* Fashion design and the most popular & fast multiple type thermocouple measuring meter

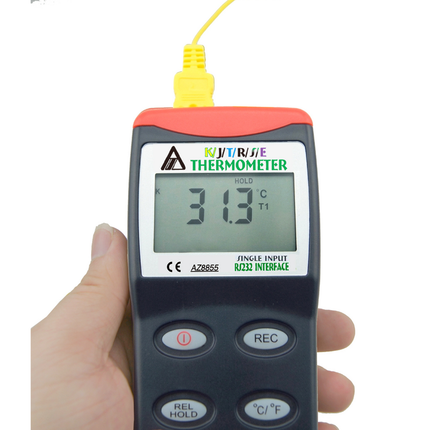

* Super big LCD for easy reading

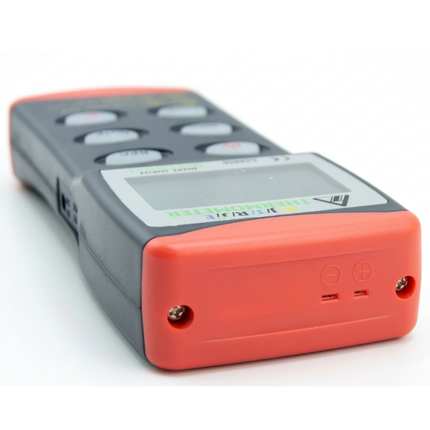

* Single input K, J, T, R, S, E Thermocouple probe compatible
* Max/Min temperature record checking
* Hold function to freeze the real time temperature data
* Battery low indication
* Temperature unit ℃/℉could be selected
* RS232 Interface
* Backlight display
* DC Jack
ISO 9001 Facility: Manufactured in an ISO 9001 certified environment.
CE EN 61326-1: Designed and tested to meet European EMC safety standards.
RoHS & REACH Compliant: We provide a Manufacturer’s Self Declaration, ensuring the product meets environmental safety standards for hazardous substances.
8855 K, J, T, R, S, E Thermocouple Thermometer features:
* Fashion design and the most popular & fast multiple type thermocouple measuring meter
* Super big LCD for easy reading
* Single input K, J, T, R, S, E Thermocouple probe compatible
* Max/Min temperature record checking
* Hold function to freeze the real time temperature data
* Battery low indication
* Temperature unit ℃/℉could be selected
* RS232 Interface
* Backlight display
* DC Jack
Application
Application of 8855 AZ Thermocouple Thermometer:
The 8855 Thermocouple Thermometer can measure the temperature from -200~1760℃, depended on which kind of Thermocouple temperature sensor attached.
The 8855 Thermocouple Temperature Meter can attach to K, J, T, R, S, E type thermocouple temperature sensor by different usage. Numerous viewing combinations are available. The big LCD has three display parts, which can keep user check the temperature and relative time information constantly.
The 8855 Temperature Meter with thermocouple sensor has the back light function, which can let user operate in the dark area easily. The temperature readings could be toggled between Fahrenheit and Celsius easily.
The 8855 AZ Thermocouple Temperature Meter is the ideal tool as the temperature monitoring and controlling for LAB, Biochemistry, HVAC/R, Construction or other Industry applications.
The 8855 AZ Thermocouple Thermo Meter is designed and manufactured by AZ Instrument, a well experienced manufacturer for Environmental Measuring Instrument.
The 8855 Thermocouple Thermometer can measure the temperature from -200~1760℃, depended on which kind of Thermocouple temperature sensor attached.
The 8855 Thermocouple Temperature Meter can attach to K, J, T, R, S, E type thermocouple temperature sensor by different usage. Numerous viewing combinations are available. The big LCD has three display parts, which can keep user check the temperature and relative time information constantly.
The 8855 Temperature Meter with thermocouple sensor has the back light function, which can let user operate in the dark area easily. The temperature readings could be toggled between Fahrenheit and Celsius easily.
The 8855 AZ Thermocouple Temperature Meter is the ideal tool as the temperature monitoring and controlling for LAB, Biochemistry, HVAC/R, Construction or other Industry applications.
The 8855 AZ Thermocouple Thermo Meter is designed and manufactured by AZ Instrument, a well experienced manufacturer for Environmental Measuring Instrument.
Specification
Specification of 8855 AZ Thermocouple Thermo Meter:
| Model | 8855 |
| K Temperature Range | -200~1370℃, -328~2498℉ (Under 18~28℃ ambient tempreature) |
| K Temperature Accuracy | ±(0.1% rdg+0.7℃), ±(0.1% rdg+1.4℉) |
| K Temperature Resolution | 0.1℃, 0.1℉ |
| J Temperature Range | -200~760℃, -328~1400℉ (Under 18~28℃ ambient tempreature) |
| J Temperature Accuracy | ±(0.1% rdg+0.7℃), ±(0.1% rdg+1.4℉) |
| J Temperature Resolution | 0.1℃, 0.1℉ |
| T Temperature Range | -200~390℃, -328~730℉ (Under 18~28℃ ambient tempreature) |
| T Temperature Accuracy | ±(0.1% rdg+0.7℃), ±(0.1% rdg+1.4℉) |
| T Temperature Resolution | 0.1℃, 0.1℉ |
| R Temperature Range | 0~1760℃, 32~3200℉ (Under 18~28℃ ambient tempreature) |
| R Temperature Accuracy | ±(0.3% rdg+0.7℃), ±(0.3% rdg+1.4℉) |
| R Temperature Resolution | 0.1℃, 0.1℉ |
| S Temperature Range | 0~1760℃, 32~3200℉ (Under 18~28℃ ambient tempreature) |
| S Temperature Accuracy | ±(0.3% rdg+0.7℃), ±(0.3% rdg+1.4℉) |
| S Temperature Resolution | 0.1℃, 0.1℉ |
| E Temperature Range | -200~736℃, -328~1356℉ (Under 18~28℃ ambient tempreature) |
| E Temperature Accuracy | ±(0.1% rdg+0.7℃), ±(0.1% rdg+1.4℉) |
| E Temperature Resolution | 0.1℃, 0.1℉ |
| LCD Size | 51(L) * 30(W) mm |
| Operating Temperature | 0~50℃ |
| Operating RH% | Humidity ＜80% |
| Storage Temperature | -20~50℃ |
| Storage RH% | Humidity ＜90% |
| Meter Size | 182(L) * 72(W) * 30(H) mm |
| Weight | ~150g |
| Battery | 9V * 1 PC or adaptor |
| Standard Package | Meter, K bead thermocouple *1 PC, Battery, Manual |
| Optional Accessory | K type thermocouple (custom made thermocouple is available upon request), Rubber boot |
Youtube
FAQ
【FAQ of AZ 8855 6-Type Thermocouple Meter, Maximum Compatibility】
Q1: What makes the AZ 8855 more reliable than entry-level thermometers?
A:The AZ 8855 is engineered for professional use, prioritizing high repeatability and linearity. Unlike budget meters that drift at extremes, it maintains stable accuracy across the entire K, J, T, R, S, and E thermocouple range, ensuring consistent data for critical industrial processes.
Q2: Why choose the AZ 8855 over the standard 8851 model?
A: The AZ 8855 offers maximum sensor versatility by supporting six thermocouple types (K, J, T, R, S, E) instead of three. While the 8851 is excellent for standard tasks, the 8855 provides peace of mind for professionals who may work with various specialized probes or require extreme high-temperature monitoring up to 1760°C in the future.

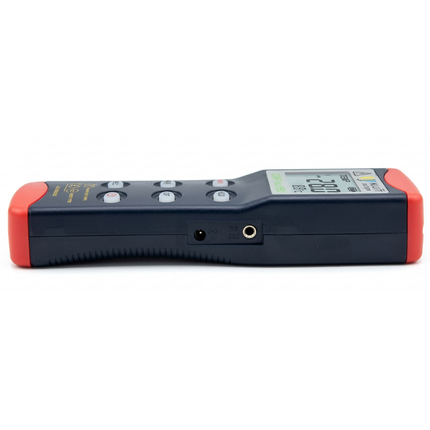

Q3: Can I integrate the AZ 8855 into my existing data system?
A: Absolutely. The AZ 8855 includes an RS232 interface and a DC jack, making it suitable for long-term monitoring and data output.
