8301 AZ
Conductivity & Temp. Meter
Welcome to check the Features, ApplicationSpecification, YouTube of 8301 AZ Portable Digital Water Quality Tester Electrical Conductivity Meter as follows
Features
The AZ 8301 Conductivity & Temp. Meter is developed under high-quality manufacturing processes to ensure reliability and safety:
ISO 9001 Facility: Manufactured in an ISO 9001 certified environment.
CE EN 61326-1 & IEC 61000: Designed and tested to meet European EMC safety standards.
RoHS & REACH Compliant: We provide a Manufacturer’s Self Declaration, ensuring the product meets environmental safety standards for hazardous substances.
ISO 9001 Facility: Manufactured in an ISO 9001 certified environment.
CE EN 61326-1 & IEC 61000: Designed and tested to meet European EMC safety standards.
RoHS & REACH Compliant: We provide a Manufacturer’s Self Declaration, ensuring the product meets environmental safety standards for hazardous substances.
8301 AZ Portable Conductivity Meter features:
* Multi display Conductivity and Temperature
* Automatic temperature compensation (ATC)
* Auto or manual Temperature compensation
* Auto ranging or manual ranging
* Cell constant, normalization Temperature switchable
* Real time clock stamped with each memory

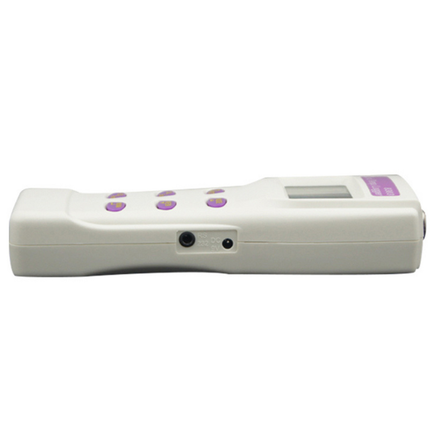

* USB Cable for PC linkage
* Auto powered off in 20 minutes after last key operation
* Sleep function is for battery power saving
Application
Application of 8301 AZ Handheld Electrical
Conductivity EC Meter:

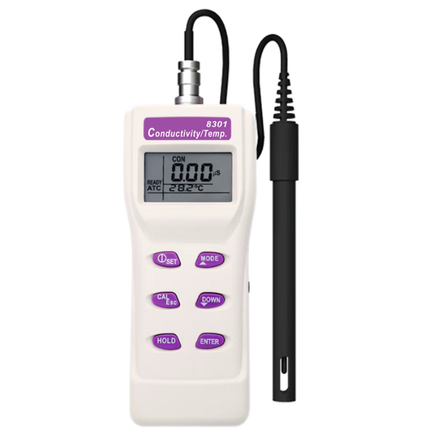

The 8301 AZ Portable Conductivity Meter can measure the Conductivity and Temperature. It has a big LCD screen for multiple parameters display. Its Conductivity sensor electrode is highest durability with reliable measurements.
The 8301 AZ Portable Conductivity Meter is default at "auto-ranging" mode. Auto-ranging mode will determine and select the range which gives you the greatest resolution and accuracy.
The Conductivity measuring function of 8301 AZ EC Meter could proceed with the calibration easily by user. The 8301 AZ Portable Conductivity Measuring Device could link to PC via USB cable to capture the on-line data, and display the Conductivity readings with real-time output. User can retrieve file, save the data for operating data analysis, record statistics....versatile functions according different purposes.
The 8301 AZ Portable Conductivity Meter could be the best Water Quality tester for all professional measuring purposes, including the LAB, water treatment business, Aquaculture, Aqua farm, swimming pool or other related industry.
8301 AZ Portable Conductivity Meter was being designed and manufactured by AZ Instrument, a well experienced manufacturer for Environmental Measuring Instrument.
The 8301 AZ Portable Conductivity Meter can measure the Conductivity and Temperature. It has a big LCD screen for multiple parameters display. Its Conductivity sensor electrode is highest durability with reliable measurements.
The 8301 AZ Portable Conductivity Meter is default at "auto-ranging" mode. Auto-ranging mode will determine and select the range which gives you the greatest resolution and accuracy.
The Conductivity measuring function of 8301 AZ EC Meter could proceed with the calibration easily by user. The 8301 AZ Portable Conductivity Measuring Device could link to PC via USB cable to capture the on-line data, and display the Conductivity readings with real-time output. User can retrieve file, save the data for operating data analysis, record statistics....versatile functions according different purposes.
The 8301 AZ Portable Conductivity Meter could be the best Water Quality tester for all professional measuring purposes, including the LAB, water treatment business, Aquaculture, Aqua farm, swimming pool or other related industry.
8301 AZ Portable Conductivity Meter was being designed and manufactured by AZ Instrument, a well experienced manufacturer for Environmental Measuring Instrument.
Specification
Specification of 8301 AZ Electrical Conductivity EC Meter:
| Model | 8301 |
| Conductivity Measuring Range | 0~19.99, 0~199.9, 0~1999 us/cm 0~19.99, 0~199.9 ms/cm |
| Conductivity Accuracy | ±1% F.S ±1 digit |
| Conductivity Resolution | 0.05% of Full Scale |
| Temperature Measuring Range | 0~80.0℃ |
| Temperature Accuracy | ±0.6℃(＜50℃), other range ±1℃ |
| Temperature Resolution | 0.1 |
| Cell Constant | ~1.0 |
| Manual/Auto | Included |
| Temperature Coefficient | 0~10.0%/℃ |
| Normalization Temperature | 15.0~30.0℃ (adjustable) |
| LCD Size | 44(L) * 26(W) mm |
| Operating Temperature | 0~50℃ |
| Operating RH% | Humidity ＜80% |
| Storage Temperature | 0~60℃ |
| Storage RH% | Humidity ＜90% |
| Sensor Life Time | >6 months (with good maintenance) |
| Meter Size | 175(L) * 70(W) * 33(H) mm |
| Weight | ~150g |
| Battery | AAA *4 PCS |
| Standard Package | Meter, Batteries, Conductivity Probe, Manual, Carry Case |
| Optional Accessory | USB Cable & Software |
Youtube
FAQ
【FAQ of AZ 8301 Cond. & Temp. Meter Real-time Data Output】
Q1: How should I clean the conductivity electrode after use?
A: After every measurement, rinse the probe thoroughly with deionized (DI) water or distilled water to remove any chemical residues. Gently blot dry with a soft, lint-free tissue. Never wipe or rub the electrode surface, as this can create static electricity or damage the sensitive sensor coating.
Q2: Does the conductivity electrode need to be stored in a soaking solution?
A: No. Unlike pH electrodes that must stay wet, conductivity sensors (like the one used for the AZ 8301) should be stored dry. After cleaning and drying the probe, simply place the protective cap back on to prevent physical damage.
Q3: How often should I calibrate the AZ 8301 conductivity meter?
A: Calibration frequency depends on your application:
* Frequent Use: Once a week is recommended.
* Occasional Use: Calibrate before each new round of testing.
* Significant Environment Changes: If the sample temperature or expected range differs greatly from the previous test, recalibrate to ensure the ATC (Auto Temperature Compensation) remains accurate.
