8694 AZ EB

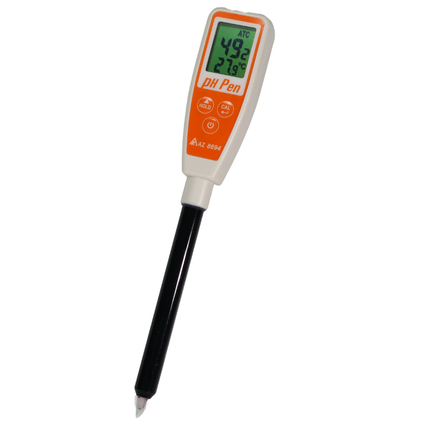

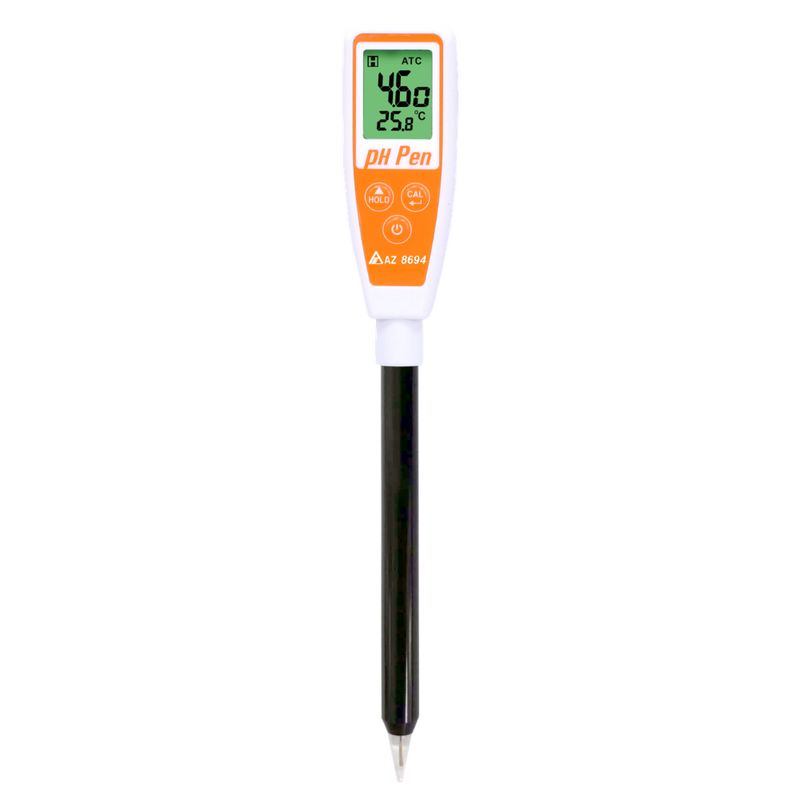

Spear Tip pH Meter
Features
* IP65 Waterproof housing
* 13.2 cm long pH probe
* Big and clear LCD provide real time pH and Temperature display
* Dual display with ATC
* Measuring stability indicator
* One touch for auto-calibration up to 3 points
* Calibration values are adjustable
* Hold function to freeze the current reading
* Compact size, easy to fit in pocket
* Low battery indicator
* Auto power off
* C/F unit switchable
* Power by 2 pcs CR2032 batteries
* Storage bottle to keep pH sensor wet & last life time Measure pH in meat, dairy, and sushi rice with precision. The 8694 Spear Tip pH Meter features an IP65 waterproof design and a 13.2cm long probe.
Application
Application of 8694 Long Tube pH Pen with Spear Tip:

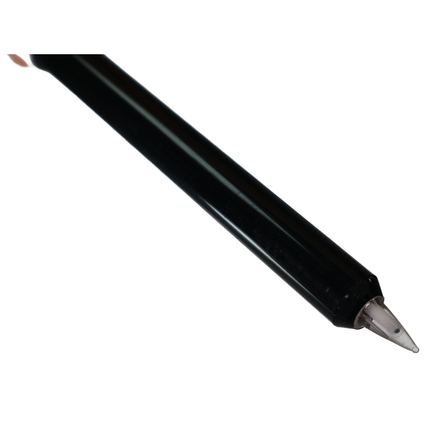

The 8694 AZ pH Meter has 13.2 cm long pH
probe with Spear tip electrode, which could be inserting to the container with
narrow opening size easily than other pH Meter. It has the waterproof IP65
function, and it can measure the pH value from 2~12 to meet different Water
Quality Testing applications.
The pH sensor electrode of 8694 AZ Long Tube Spear Tip
pH Pen is protected/storage in a bottle, which could keep the pH
sensor wet. The 8694 AZ Long Tube Spear Tip pH Pen
can be calibrated easily by one touch calibration function.
The 8694 AZ Long Tube Glass Spear Tip pH Pen
has big and clear LCD to show the real time pH and temperature value. The Spear
tip pH electrode of 8694 AZ can be met with

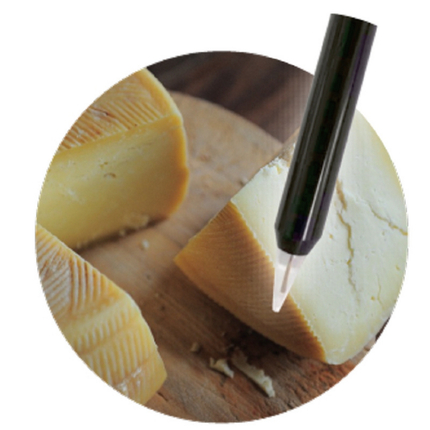

the water solution pH measuring purposes of dairy, meat, milk, sushi rice,
semi-solid foods, yogurt or other food treated processing industry testing
object.
The 8694 AZ Long Tube Spear Tip pH Device
was being designed and manufactured by AZ Instrument, a well experienced
manufacturer for Environmental Measuring Instrument.
Specification
Specification of 8694 AZ Long Tube Spear Tip pH Pen:
| Model | 8694 |
| pH Measuring Range | 2.00~12.00 |
| pH Accuracy | ±0.1 |
| pH Resolution | 0.01 |
| Temperature Measuring Range | 0~80.0℃ |
| Temperature Accuracy | ±1℃ |
| Temperature Resolution | 0.5℃ |
| pH Electrode Material | Glass |
| Reference | Single Ag/AgCl |
| Junction / Flow Rate | Fiber |
| Electrolyte | Gel. 3.3 M KCl |
| pH Sensor Tip Shape | Spear Tip |
| pH Probe Diameter | 12 mm |
| pH Probe Length | 132 mm |
| ATC | ATC |
| pH Calibration | Up to 3 points |
| LCD Size | 29(L) * 22.5(W) mm |
| Operating Temperature | 0~80℃ |
| Operating RH% | Humidity ＜80% |
| Storage Temperature | -10~50℃ |
| Storage RH% | Humidity ＜90% |
| Sensor Life Time | >6 months (with good maintenance) |
| Meter Size | 94(L) * 36(W) * 20(H) mm |
| Weight | ~115g |
| Battery | CR2032 *2 PCS |
| Standard Package | Meter, Batteries, Manual, Paper Box |
Youtube
Introduction Video of AZ Water Testing Long Tube Series pH Pen
FAQ
【FAQ of 8694 Sharp Tip pH Pen (Meat/Food)】
Q1: Can I use the 8694 spear tip to directly pierce through tough or frozen food materials?
A1: No. Although the electrode has a sharp "spear" shape, it is made of high-precision glass. To prevent the glass tip from shattering, you should never use it to drill or force your way into hard, frozen, or extremely dense samples.
Always ensure the material is soft enough to be pierced with minimal pressure, or use a separate metal tool to create a pilot hole before measurement.
Q2: How do I clean the AZ 8694’s spear tip after testing meat?
A2: Rinse with distilled water and use a mild detergent to remove fat or protein residues, then dry carefully to maintain accuracy.
Q3: How do I maintain the long probe electrode for longevity?
A3: Always keep the electrode tip moist by adding KCL storage solution to the protective cap.
Avoid touching the glass membrane with hard objects and rinse with distilled water after each use to prevent cross-contamination.
