8583 AZ EB
NEW
Detachable PAR Meter
Welcome to check the Features, Application, Specification of and YouTube of 8583 AZ Detachable Full Spectrum PAR Meter as follows
Features
The AZ 8583 Detachable PAR Meter is developed under high-quality manufacturing processes to ensure reliability and safety:
ISO 9001 Facility: Manufactured in an ISO 9001 certified environment.
CE EN 61326-1 & IEC 61000: Designed and tested to meet European EMC safety standards.
RoHS & REACH Compliant: We provide a Manufacturer’s Self Declaration, ensuring the product meets environmental safety standards for hazardous substances.
8583 AZ Detachable Full Spectrum PAR Meter features:
* Stable measurement of photosynthetically active radiation (PAR, PPFD Photosynthetic Photon Flux Density)
* High accuracy PAR measurement for 400 to 700nm under all light sources, including LEDs

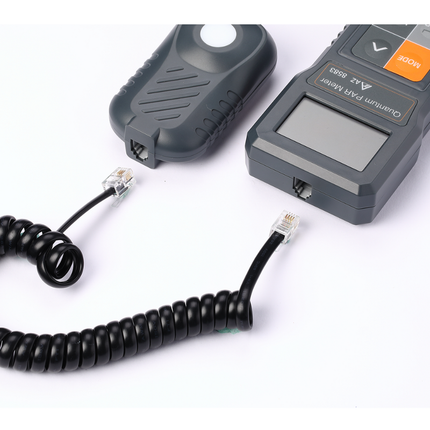

* Provided with 2 high quality RJ11 ethernet cable:

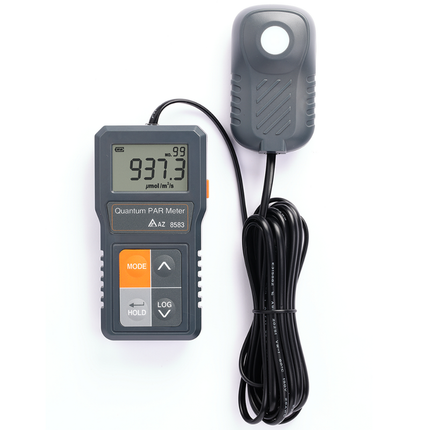

- 12 ft straight cable for extended stick and

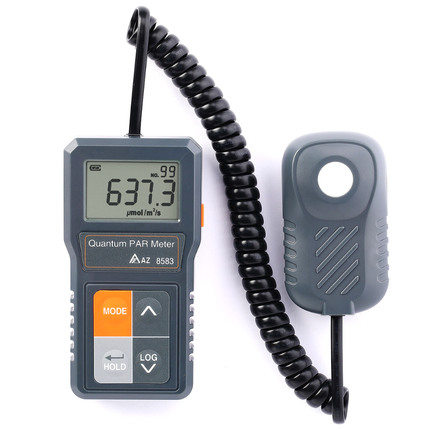

- 4.9 ft coil cable for handheld
ISO 9001 Facility: Manufactured in an ISO 9001 certified environment.
CE EN 61326-1 & IEC 61000: Designed and tested to meet European EMC safety standards.
RoHS & REACH Compliant: We provide a Manufacturer’s Self Declaration, ensuring the product meets environmental safety standards for hazardous substances.
8583 AZ Detachable Full Spectrum PAR Meter features:
* Stable measurement of photosynthetically active radiation (PAR, PPFD Photosynthetic Photon Flux Density)
* High accuracy PAR measurement for 400 to 700nm under all light sources, including LEDs
* Provided with 2 high quality RJ11 ethernet cable:
- 12 ft straight cable for extended stick and
- 4.9 ft coil cable for handheld
Application
Application of 8583 AZ Detachable Full Spectrum PAR Meter:
1. Horticulture:
The measurement of PAR flux density is crucial for optimizing plant growth in greenhouses and indoor farms, as it provides information on the amount of light energy available for photosynthesis. By monitoring the PAR levels, growers can adjust the lighting intensity, duration, and spectrum to achieve optimal plant growth and yield.
2. Plant Physiology:
8583 AZ Detachable Full Spectrum PAR Meter can be used in plant physiology research to study the effects of different light conditions on photosynthesis, growth, and development. It can also be used to quantify the photosynthetic capacity of plants and the efficiency of light absorption.
3. Environmental Science:
8583 AZ Detachable Full Spectrum PAR Meter can be used to measure the PAR flux density in natural ecosystems and to study the effects of climate change, air pollution, and other environmental factors on plant growth and productivity.
4. Education:
8583 AZ Detachable Full Spectrum PAR Meter can be used as a teaching tool in biology and horticulture classes to demonstrate the importance of light in plant growth and to provide hands-on experience in measuring PAR levels.
The 8583 AZ Detachable Full Spectrum PAR Meter was being designed and manufactured by AZ Instrument, a well experienced manufacturer for Environmental Measuring Instrument.
1. Horticulture:
The measurement of PAR flux density is crucial for optimizing plant growth in greenhouses and indoor farms, as it provides information on the amount of light energy available for photosynthesis. By monitoring the PAR levels, growers can adjust the lighting intensity, duration, and spectrum to achieve optimal plant growth and yield.
2. Plant Physiology:
8583 AZ Detachable Full Spectrum PAR Meter can be used in plant physiology research to study the effects of different light conditions on photosynthesis, growth, and development. It can also be used to quantify the photosynthetic capacity of plants and the efficiency of light absorption.
3. Environmental Science:
8583 AZ Detachable Full Spectrum PAR Meter can be used to measure the PAR flux density in natural ecosystems and to study the effects of climate change, air pollution, and other environmental factors on plant growth and productivity.
4. Education:
8583 AZ Detachable Full Spectrum PAR Meter can be used as a teaching tool in biology and horticulture classes to demonstrate the importance of light in plant growth and to provide hands-on experience in measuring PAR levels.
The 8583 AZ Detachable Full Spectrum PAR Meter was being designed and manufactured by AZ Instrument, a well experienced manufacturer for Environmental Measuring Instrument.
Specification
Specification of 8583 AZ Detachable Full Spectrum PAR Meter:
| Model | 8583 |
| Spectral Range | 400±10nm~700±10nm |
| Measurement Range | 0~4000 μmol/m2/sec |
| Display Resolution | 0 .1 μmol/m2/sec for 0~999 , 1 μmol/m2/sec for 1000~4000 |
| Accuracy | ±5 or ± 5% of reading, whichever is greater |
| Repeatability & Non-linearity | ±1 μmol/m2/sec Less than 3% (up to 4000 μmol/m2/sec) |
| LCD update time | 0.5 second |
| Field of View | 180° |
| Directional (Cosine) Response | ± 5 % at 75° zenith angle |
| Calibration Uncertainty | ±5% |
| Temperature Response | ±0.02% per℃ |
| ZERO Function | YES |
| RESET Function | YES |
| LCD Size | 25(H)x40(W)mm |
| Operating Temp. | 0~50℃ |
| Operating RH% | Humidity < 80% |
| Storage Temperature | -10~50℃ |
| Storage RH% | Humidity <90%, no condensation |
| Dimension | Meter: 115(L)x60(W)x24(H)mm PAR sensor: 80(L)x45.6(W)x26(H)mm |
| Cable | 12 ft straight RJ11 cable, 4.9 ft coiled Rj11cable |
| Selfie stick | 22 cm storage, 100cm extended |
| Weight | ~115g (w/o battery and cable) |
| Power Supply/Consumption | AAA battery x 2pcs, less than 10mA |
| Standard Package | Meter/PAR sensor/Straight cable/Coiled cable Selfie stick/Battery/Manual/Hard carry case |
| Long-term Drift Per Year | Less than 2% Per Year |
Youtube
Welcome to learn more about the AZ 8583 PAR meter (Quantum photosynthetically active radiation meter) from the following product introduction video via YouTube.
AZ 8583 PAR meter (Quantum photosynthetically active radiation meter) unboxing video
AZ 8583 PAR meter (Quantum photosynthetically active radiation meter) unboxing video
FAQ
【FAQ of AZ 8583 Detachable PAR Meter Full Spectrum PPFD Measurement】
Q1: Does it work with LED grow lights?
A: Yes, it measures full-spectrum (400-700nm) light, including all LED colors, HPS, and sunlight with high accuracy.
Q2: What is the benefit of the detachable sensor?

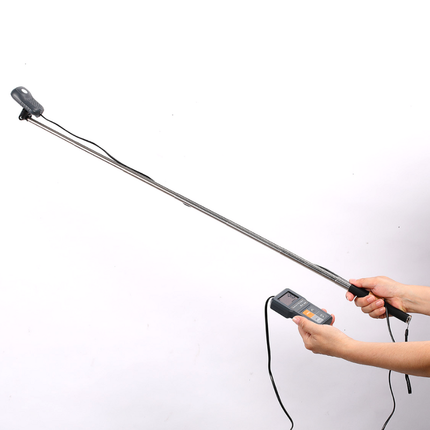

A: With the telescopic pole, you can measure the plant canopy directly without your body casting shadows on the sensor.
Q3: Is it suitable for professional research?
A: Yes, it features cosine correction and a 4000 μmol/m²/s range, providing scientific-grade data for horticulture.
