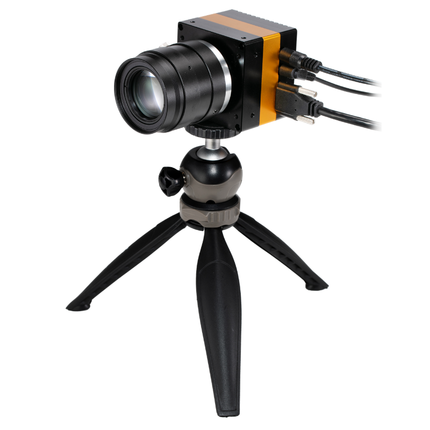

8960 FPS High Speed Camera
Welcome to check the Features, Application, Specification of 9502 AZ Professional 8960FPS High Speed Camera as follows
Features
The 9502 8960 FPS High Speed Camera is developed under high-quality manufacturing processes to ensure reliability and safety:
ISO 9001 Facility: Manufactured in an ISO 9001 certified environment.
CE EN 55032, EN 55035 & IEC 61000: Designed and tested to meet European EMC safety standards.
RoHS & REACH Compliant: We provide a Manufacturer’s Self Declaration, ensuring the product meets environmental safety standards for hazardous substances.
9502 AZ Professional 8960FPS High Speed Camera features:
* First affordable 8960FPS high speed camera on market
* Compact size with rugged metal enclosure
* Compatible with any C-mount camera lens
* Dual color LED as status indicator
* Powered by 9 to 24VDC adaptor (included)
* 5Mega pixel 1 inch CMOS sensor with global shutter
* At least 140FPS at max. resolution (2560 x 1024)
* Maximum speed achieves 8960 FPS (320 x 128)
* USB 3.0 interface cooperate with enclosed PC software to do record, review and file convert

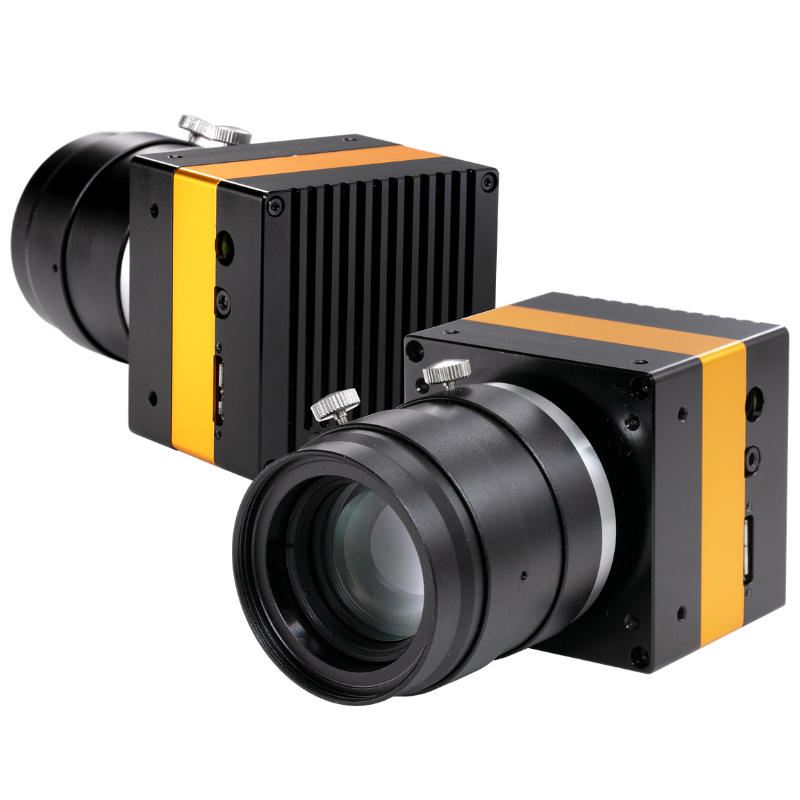

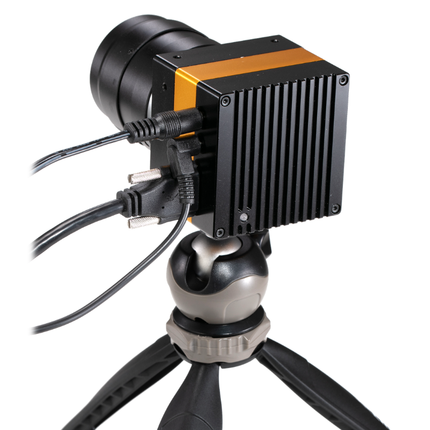

* Remote trigger cable included. Socket for synchronizing multi-camera via RS-422/TTL is also built-in
* Ready to use right out of the box, no need to purchase other accessories
ISO 9001 Facility: Manufactured in an ISO 9001 certified environment.
CE EN 55032, EN 55035 & IEC 61000: Designed and tested to meet European EMC safety standards.
RoHS & REACH Compliant: We provide a Manufacturer’s Self Declaration, ensuring the product meets environmental safety standards for hazardous substances.
9502 AZ Professional 8960FPS High Speed Camera features:
* First affordable 8960FPS high speed camera on market
* Compact size with rugged metal enclosure
* Compatible with any C-mount camera lens
* Dual color LED as status indicator
* Powered by 9 to 24VDC adaptor (included)
* 5Mega pixel 1 inch CMOS sensor with global shutter
* At least 140FPS at max. resolution (2560 x 1024)
* Maximum speed achieves 8960 FPS (320 x 128)
* USB 3.0 interface cooperate with enclosed PC software to do record, review and file convert
* Remote trigger cable included. Socket for synchronizing multi-camera via RS-422/TTL is also built-in
* Ready to use right out of the box, no need to purchase other accessories
Application
Application of 9502 AZ Professional 8960 FPS High Speed Camera:
The 9502 AZ Slow Motion Video Camera is capable of frame rates in excess of 8960 frames per second. This 9502 AZ slow motion movie camera can be recording fast-moving objects as a photographic image(s) onto a storage medium (PC), after recording, the images stored on the medium can be played back in slow-motion.
The frames per second of 9502 AZ high seed camera is from 140 to 8960 FPS, which can be met with many kinds of Industry purposes.
The 9502 AZ Slow Mo Camera can be used for the study and analysis purpose for Life Science, Physical Science, Machine Vision, Sport, Ballistics, Industry, Automobile, Explosives, Fluid Dynamics, Material Science.
The 9502 AZ Slow Motion Video Camera is capable of frame rates in excess of 8960 frames per second. This 9502 AZ slow motion movie camera can be recording fast-moving objects as a photographic image(s) onto a storage medium (PC), after recording, the images stored on the medium can be played back in slow-motion.
The frames per second of 9502 AZ high seed camera is from 140 to 8960 FPS, which can be met with many kinds of Industry purposes.
The 9502 AZ Slow Mo Camera can be used for the study and analysis purpose for Life Science, Physical Science, Machine Vision, Sport, Ballistics, Industry, Automobile, Explosives, Fluid Dynamics, Material Science.
Specification
Specification of 9502 High Speed Camera:
| Model | 9502 | ||
| CMOS | 5 Mega pixel, 1” optical format, global shutter | ||
| Maximum Speed | 8960 FPS (320 x 128) | ||
| Res (H x V) vs FPS | Ratio 5:2 | Ratio 16:9 | Ratio 5:4 |
| 2560 x 1024 @140 FPS 1920 x 768 @ 245 FPS 1280 x 512 @ 560 FPS 800 x 320 @ 1432 FPS 640 x 256 @ 2240 FPS 320 x 128 @ 8960 FPS |
2560 x 1440 @99 FPS 1920 x 1080 @ 175 FPS 1280 x 720 @ 395 FPS 800 x 450 @ 1010 FPS 640 x 360 @ 1590 FPS 320 x 180 @ 6370 FPS |
2560 x 2048 @70 FPS 1920 x 1536 @ 120 FPS 1280 x 1024 @ 280 FPS 800 x 640 @ 715 FPS 640 x 512 @ 1120 FPS 320 x 256 @ 4480 FPS |
|
| Pixel Size | 5 um Sq.pixels | ||
| Maximum Shutter | 1uS | ||
| Light Sensitivity (Analog gain control) |
ISO 100-6400 (monochrome) 1x/2x/4x/8x/16x/32x/64x |
||
| Digital Gain Control | 0.01~16x | ||
| Standard Memory | Video stored in host PC | ||
| Image Output | *.bmp/*.jpg/*.png/ | ||
| Video Output | MPEG2 (*.mpg)/H.264(*.mp4) | ||
| Power Input | External DC 9~24V | ||
| Camera Control | USB 3.0 (USB 3.1/3.2 Gen1) super speed | ||
| Trigger Input | Remote trigger cable & IN1: TTL/RS-422 from expansion I/O connector |
||
| Trigger Output | OUT1: Trigger in 1 bypass for multi-camera trigger synchronization OUT2: Exposure indicator signal for lighting strobe control |
||
| Display or LED | Dual Color LED | ||
| Compatible Lens | C-mount / CS-mount | ||
| Software License | Not required | ||
| Housing | Aluminum | ||
| Size | 60 (L) * 60 (W) * 50 (H) mm | ||
| Weight | 258 g exclusive of lens | ||
| Operating Temperature | 0~40℃ | ||
| Operating RH% | 20~80% RH | ||
| Storage Temperature | -20~60℃ | ||
| Storage RH% | 20~95% RH | ||
| Upgradable | USB 3.0 filed upgradable | ||

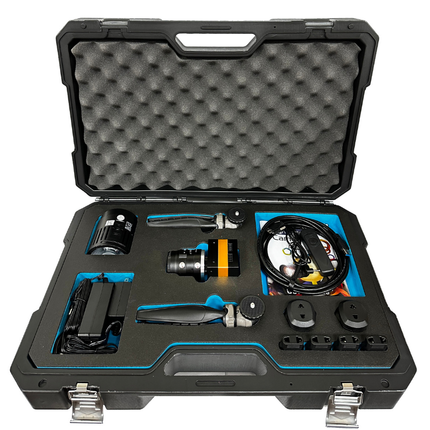

| Standard Package | Camera, Lens, LED light set, power adaptor x 2 USB 3.0 Cable, Remote trigger, Carry case, CD, Manual, Tripod x 2 |
||
| Country of Origin | Taiwan | ||
| C-mount lens Optional | Standard: CHIOPT, HC5005A, 1”, F1.4, f=50mm More C-mount lens avalible upon request |
||
| Compatible PC | -Above i3 CPU,8GB RAM, USB3.0 port (3.1/3.2 Gen 1) -Win7,Win 8,Win 10& Win 11 |
||
