8314 AZ
NEW
EC/TDS Nutrient Conductivity Meter
Features

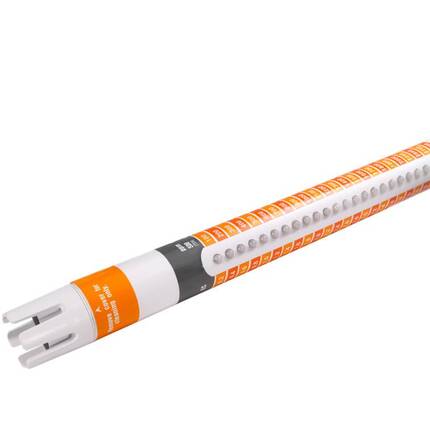

8314 AZ EC/TDS Nutrient Conductivity Meter features:
* 24 bright blue LED indicators
* No calibration required
* Graphite EC probe with built-in temperature sensor
* Measures in CF, EC, PPM500, and PPM700
* Rugged design, doubles as a stirring stick
* Auto on/off function, button-free operation
* Low battery indicator

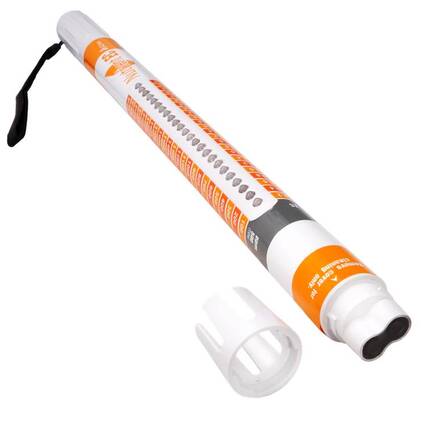

* Detachable crown cap for easy cleaning
* Conductivity scales and operating instructions printed on the meter body
Application
Application of 8314 AZ EC/TDS Nutrient Conductivity Meter:
The 8314 EC/TDS Nutrient Conductivity Meter is primarily used for measuring nutrient concentration in water-based growing systems, making it ideal for hydroponics, agriculture, and water quality monitoring.
This 8314 AZ EC/TDS Nutrient Conductivity Meter's simplicity and versatility make it a practical choice for growers and technicians who need fast, reliable nutrient measurements without complex setup.
Key applications of 8314 AZ EC/TDS Nutrient Conductivity Meter's are listed as below,
1. Hydroponic Farming
- Monitors nutrient strength in solution to ensure optimal plant growth.
- Supports multiple scales (CF, EC, PPM500, PPM700), allowing growers to match regional or crop-specific standards.
- Built-in temperature sensor helps compensate readings for accurate nutrient delivery.
2. Greenhouse and Controlled Environment Agriculture
- Used to track and adjust fertilizer concentrations in irrigation systems.
- Ensures consistent EC levels for sensitive crops like lettuce, herbs, and strawberries.
3. Soil-less Cultivation Systems
- Suitable for aquaponics and aeroponics, where nutrient balance is critical.
- No calibration required, simplifying routine checks for growers.
4. Water Quality Testing
- Measures total dissolved solids (TDS) to assess water purity or contamination.
- Useful for checking source water before mixing nutrients.
5. Educational and Research Use
- Provides a hands-on tool for plant science and agronomy studies.
- LED indicators and printed instructions make it accessible for training and demonstrations.
6. Field and On-Site Testing
- Rugged design doubles as a stirring stick, ideal for quick mixing and testing in tanks or reservoirs.
- Button-free operation and auto on/off enhance usability in outdoor or high-humidity environments.
8314 AZ EC/TDS Nutrient Conductivity Meter was being designed and manufactured by AZ Instrument, a well experienced manufacturer for Environmental Measuring Instrument.
Specification
Specification of 8314 AZ EC/TDS Nutrient Conductivity Meter:
| Model | 8314 |
| Conductivity Range (EC) |
0.2 to 6.0 mS/cm 2~60 CF |
| EC Resolution | 0.1 mS/cm (0.2 to 4.0 mS/cm), 0.25 mS/cm (0.4 to 6.0 mS/cm) , 1 CF (2 to 40 CF) 2.5 CF (5 to 100 CF) |
| EC Accuracy | ±4% of reading ±1 resolution point |
| TDS Range | 140 ~ 4200 ppm (700 ppm scale) 100 ~ 3000 ppm (500 ppm scale) |
| TDS Resolution | - 700ppm scale: 70 ppm (140 to 2800 ppm), 175 ppm (2800 to 4200 ppm) -500ppm scale: 50 ppm (100 to 2000 ppm), 125 ppm (2000 to 3000 ppm) |
| TDS Accuracy | ±4% of reading ±1 resolution digit |
| Calibration | Factory Calibrated |
| Material | Graphite electrodes in ABS + PC body |
| IP Rating | - IP67, floating |
| ATC | Automatic from 0~50.0°C (32–122°F) |
| LED | 24 PCS blue LEDs |
| Measuring Temperature |
0~50.0°C |
| Storage Temperature |
0~60°C |
| Storage RH% | Humidity < 90% RH |
| Sensor Lifetime | >5 years (with good maintenance) |

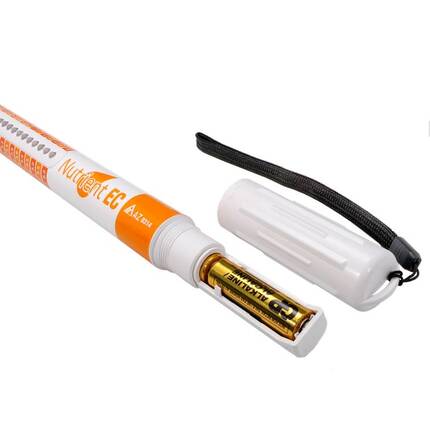

| Battery Type | 3 × 1.5V AA alkaline |
| Battery Lifetime | Around 3 years (10 measurements /day) |
| Dimensions | 453mm (L) * 29.9mm (Dia.) 17.83" (L) * 1.18" (Dia.) |
| Weight | ~230g |

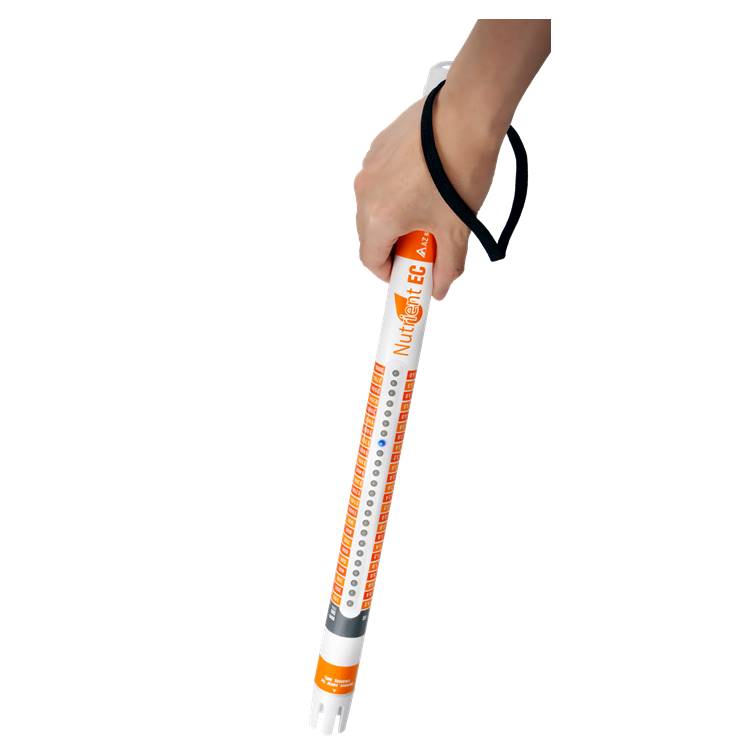

| Standard Package | Meter, Wrist Strap, Battery, Manual, ColorBox |
