8916 AZ-Bulk Order
Temp. Anemometer
Features
* Measures air velocity, volume, temperature
* 10 cm diameter vane type
* Auto airflow cone recognize (Square /round type)
* Max. /min. value, Hold function
* Unlimited points average auto calculation
* Time weighted average auto calculation
* Inlet and outlet measurement is doable
* Auto power off in 20 mins inactivity
* Low battery indicator

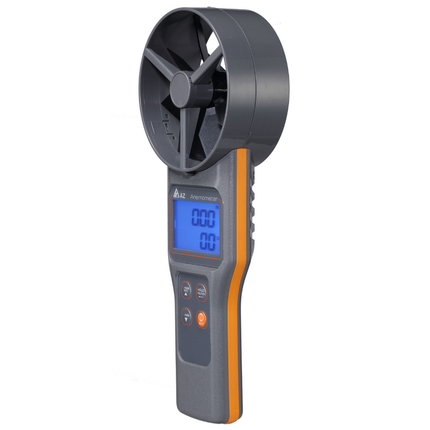

* Blue back-light for dark area operation Measure air velocity, volume, and temperature accurately with the 8916 AZ 10cm Vane Anemometer. Features auto airflow cone recognition and time-weighted average calculations. Ideal for HVAC and industrial use.
Application
Application of 8916 AZ Air Flow Measuring Devices:
The 8916 Portable AZ Wind Speed Meter can measure the Air Speed, Air Velocity, Air Volume, Temp., which is the best choice as the wind speed monitoring device in HVAC (Heating, Ventilation, Air Conditioning and Refrigerating) or industrial related application.

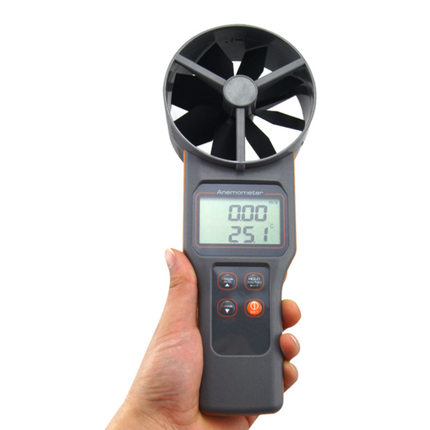

The portable 8916 AZ Air Flow Thermometer has the 10 cm diameter vane type. It could attach to the specific air flow cone to measure the volume quickly. User just needs to install the compatible airflow cone, the meter will recognize the area for air volume calculations automatically. The air flow cone set has the round and square size, which could be met with most applications.
The 8916 AZ Temperature Air Flow Meter was being designed and manufactured by AZ Instrument, a well experienced manufacturer for Environmental Measuring Instrument.
Specification
Specification of 8916 10 cm Vane Temperature Anemometer:
| Model | 8916 |
| Wind Speed Range | 0.20~30.00 m/s |
| Wind Speed Accuracy | ±(1.5% of reading+0.3 m/s) for under 20 m/s ±(3% of reading+0.3 m/s) for above 20 m/s |
| Air Temperature Range | -20~60℃ |
| Air Temperature Resolution | 0.1℃, 0.1℉ |
| Air Temperature Accuracy | ±0.6℃ |
| Temperature Response Time | 60 seconds (typical) |
| LCD Update | Every second |
| Air Volume Display | 0~99999 m3/minute |
| Air Volume Resolution | 0.1 (0~9999.9) or 1 (10000~99999) |
| LCD Size | 54(L) * 32.5(W) mm |
| Operating Temperature | 0~50℃ |
| Operating RH% | Humidity ＜80% |
| Storage Temperature | -10~50℃ |
| Storage RH% | Humidity ＜90% |
| Meter Size | 269(L)* 106(W) * 51(H) mm |
| Weight | ~200g |
| Battery | AAA*4 PCS |
| Standard Package | Meter, Batteries, Manual, Hard Carry Case |
| Optional Accessory | Airflow Cone (W/soft Carry Case)   |
Youtube
FAQ
【FAQ of AZ 8916 Vane Anemometer (Temp.)】
Q1: Why is the 10cm large vane of the AZ 8916 better than small ones?
A1: The 10cm large vane covers a wider area to average out air turbulence, providing more stable and accurate readings. Its larger surface also increases sensitivity to low-speed airflows that smaller anemometers often fail to detect.
Q2: Can the AZ 8916 measure air volume (CMM/CFM) directly?

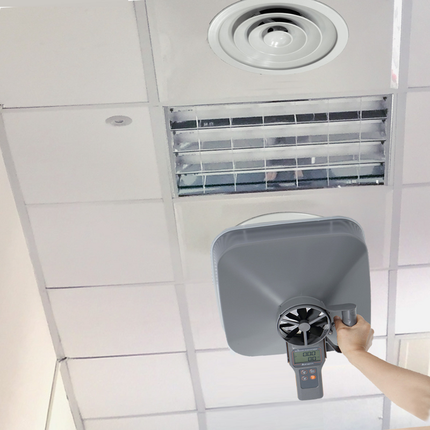

A2: Yes. The 8916's 10cm head is specifically designed to fit with the optional AZ 8916RNL Airflow cone (flow hoods).
This allows for direct, precise air volume measurement at diffusers and grilles, eliminating the need for complex manual calculations.
Q3: Why is my AZ 8916 anemometer non-calibratable if the readings are significantly off after long time?
A3: If readings are highly inaccurate after using a long time, the vanes, shaft, or bearings may be physically deformed or worn.
Since these hardware damages alter the linear response of the AZ 8916 anemometer, software calibration cannot restore factory precision.
In such cases, we recommend replacing the unit to ensure safety and measurement integrity.
