9671 AZ-Bulk Order
Anemometer Data Logger
Welcome to check the Features, Application, Specification of AZ 9671 Wind Speed Air Flow Meter Data Logger as follows
Features
The AZ 9671 Anemometer Data Logger is developed under high-quality manufacturing processes to ensure reliability and safety:
ISO 9001 Facility: Manufactured in an ISO 9001 certified environment.
CE EN 61326-1 & IEC 61000: Designed and tested to meet European EMC safety standards.
RoHS & REACH Compliant: We provide a Manufacturer’s Self Declaration, ensuring the product meets environmental safety standards for hazardous substances.
AZ 9671 Anemometer Logger features:
* Feature building in humidity sensor in remote vane
* Measuring / programming wind speed anywhere, anytime
* User friendly interface for every customer
* Unique design smart data logging method

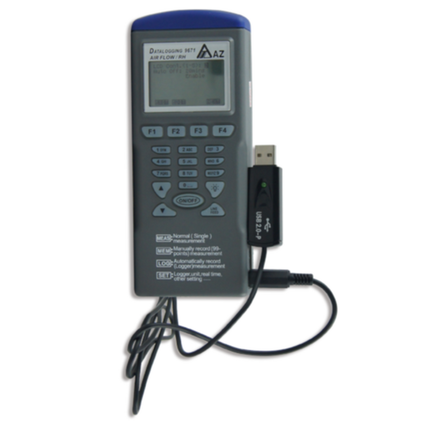

* RS232 software kit enable to link with PC for downloading data and uploading 99 measurements
* Location via PC setting
ISO 9001 Facility: Manufactured in an ISO 9001 certified environment.
CE EN 61326-1 & IEC 61000: Designed and tested to meet European EMC safety standards.
RoHS & REACH Compliant: We provide a Manufacturer’s Self Declaration, ensuring the product meets environmental safety standards for hazardous substances.
AZ 9671 Anemometer Logger features:
* Feature building in humidity sensor in remote vane
* Measuring / programming wind speed anywhere, anytime
* User friendly interface for every customer
* Unique design smart data logging method
* RS232 software kit enable to link with PC for downloading data and uploading 99 measurements
* Location via PC setting
Application
Application of 9671 AZ Anemometer Data Logger:
The 9671 AZ Air flow Meter Recorder has the replacement probe, it can measure the Air Speed, Air Velocity, Air Volume, Temp., Humidity and Wet bulb temperature, which is the best choice as the wind speed monitoring device in HVAC (Heating, Ventilation, Air Conditioning and Refrigerating) or industrial related application.
The 9671 AZ Air Flow Psychrometer can record the Air Speed value as you wished. It could use the tripod for long time recording works.
The 9671 AZ Combo Anemometer Recorder was being designed and manufactured by AZ Instrument, a well experienced manufacturer for Environmental Measuring Instrument.
The 9671 AZ Air flow Meter Recorder has the replacement probe, it can measure the Air Speed, Air Velocity, Air Volume, Temp., Humidity and Wet bulb temperature, which is the best choice as the wind speed monitoring device in HVAC (Heating, Ventilation, Air Conditioning and Refrigerating) or industrial related application.
The 9671 AZ Air Flow Psychrometer can record the Air Speed value as you wished. It could use the tripod for long time recording works.
The 9671 AZ Combo Anemometer Recorder was being designed and manufactured by AZ Instrument, a well experienced manufacturer for Environmental Measuring Instrument.
Specification
Specification of 9671 Air Flow Data Logger:
| Model | 9671 |
| Wind Speed Range | 0.6~32 m/s |
| Wind Speed Accuracy | ±(2% of reading+0.2 m/s) |
| Air Temperature Range | -20~60℃ |
| Air Temperature Resolution | 0.1℃, 0.1℉ |
| Air Temperature Accuracy | ±0.6℃ (-20~50℃), ±1.2℃ at others |
| Air RH% Range | 0.1%~99.9%RH |
| Air RH% Resolution | 0.1%RH |
| Air RH% Accuracy | ±3%RH (at 25℃ 10~90%RH, others ±5%RH) |
| Temperature Response Time | 60 seconds (typical) |
| Air RH% Response Time | 60 seconds (typical) |
| LCD Update | Every second |
| Wet Bulb Temp. Display | -22~70.0℃ |
| Wet Bulb Temp. Resolution | 0.1℃, 0.1℉ |
| Air Volume Display | 0~99999 m3/minute |
| Air Volume Resolution | 0.1 (0~9999.9) or 1 (10000~99999) |
| LCD Size | 45(L) * 26(W) mm |
| Operating Temperature | 0~50℃ |
| Operating RH% | Humidity ＜80% |
| Storage Temperature | -20~50℃ |
| Storage RH% | Humidity ＜90% |
| Meter Size | 170(L) * 70(W) * 40(H) mm |
| Weight | ~210g |

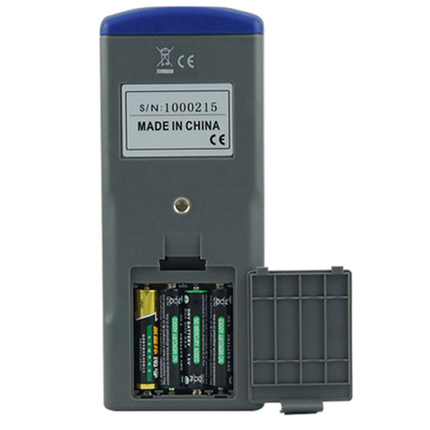

| Battery | AAA*4 PCS or 9V DC Adaptor |
| Optional Accessory | Replacement Vane Probe |
| Standard Package | Meter, Wind Probe, Thermo Paper, Batteries, Manual, Software Kit, Hard Carry Case |
FAQ
【FAQ of AZ 9671 Anemometer Air Flow & Humidity Data Logger】
Q1: How does the data logging feature benefit professional HVAC technicians?
A: Unlike basic anemometers, the AZ 9671 features a built-in Data Logger. It can be mounted on a tripod for long-term monitoring, allowing technicians to record air flow fluctuations over time. With the RS232 output interface and software kit, user can download up to 99 recorded measurements to a PC for reporting and trend analysis.
Q2: Why is the "Remote Vane" design superior to integral fan models?

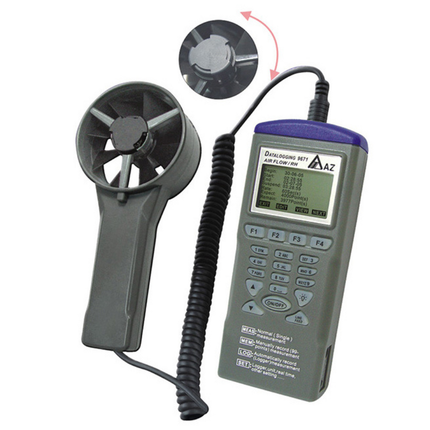

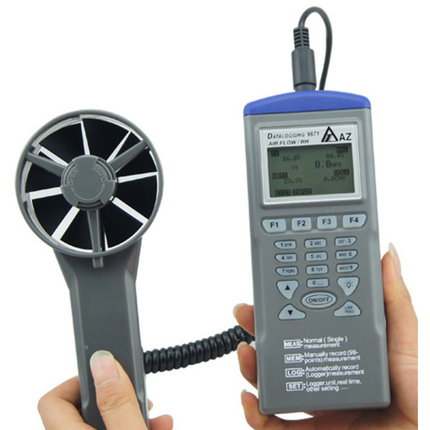

A: The AZ 9671 uses a remote vane probe connected by a flexible cable. This allows users to extend the sensor into hard-to-reach ventilation ducts or high ceilings while keeping the LCD display at eye level for easy reading. It also features a built-in humidity sensor directly in the vane for more accurate psychrometric data at the source.
Q3: Can the AZ 9671 vane probe be replaced if damaged?
A: Yes. The AZ 9671 features a user-replaceable vane probe. If the fan or humidity sensor is damaged, you can simply swap the probe instead of replacing the entire meter, significantly extending the device's lifespan and reducing long-term maintenance costs.
