8008 AZ EB
Combo Tachometer
Features
ISO 9001 Facility: Manufactured in an ISO 9001 certified environment.
CE EN 61326-1 & IEC 61000: Designed and tested to meet European EMC safety standards.
RoHS & REACH Compliant: We provide a Manufacturer’s Self Declaration, ensuring the product meets environmental safety standards for hazardous substances.
8008 AZ Pocket Size 2 in 1 Digital tachometer features:
* Lowest cost contact and non-contact 2 in 1 combo tachometer in the market
* Two ways to power on/off
* Simple three steps to transform from contact to non-contact tachometer

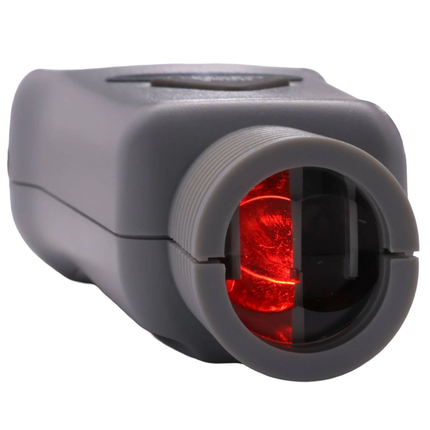

* Non-contact measurement by red LED beam

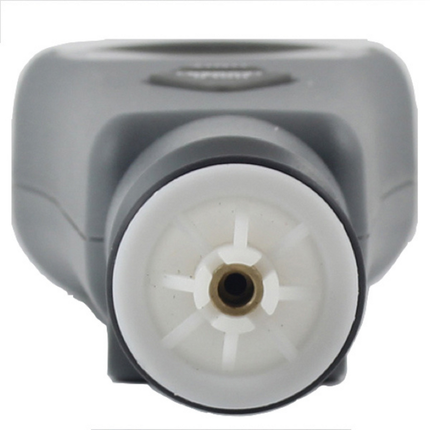

* Contact rotating object via convex or concave contact tips
* Measure RPM from 10 to 99999 RPM
* Auto range function
* Affix a reflective tape to the rotating element to measure
* Four rotation speed units are switchable in contact mode: rpm, m/min, ft/min, yd/min
* Non-Sleep mode & hold function
* Auto power off after 20 mins inactivity
* Low battery indicator
Application
Application of 8008 AZ Digital Contact / LED Non-contact Combo Tachometer:
The 8008 AZ RPM meter (RPM:
Revolutions Per Minute), which has tow way to measure the rotation speed of a
shaft, including the motor, truck, machine, engine, automobile, vehicle
industry.

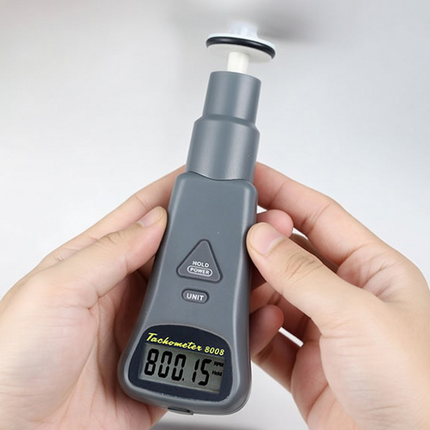

The hand held 8008 AZ tachometer has the
read LED beam as the non-contact infrared tachometer and it also can contact the
rotating object (ex: spare wheels) directly via the convex or concave contact
tips.
The portable 8008 AZ Combo Tachometer was
being designed and manufactured by AZ Instrument, a well experienced
manufacturer for Environmental Measuring Instrument.
Specification
Specification of 8008 AZ Digital Contact / LED Non-contact Combo Tachometer:
| Model | 8008 |
| Non-Contact Rotation Measuring Range | 10.0~99999 RPM |
| Contact Rotation Measuring Range | 10.0~19999 RPM |
| Contact Surface Speed Measuring Range | 1.0000~9999.9 M/Min 3.0000~30000 Ft/Min 1.0000~10000 Yd/Min |
| RPM Unit Resolution | 0.001/0.01/0.1/1 |
| M/Min Unit Resolution | 0.0001/0.001/0.01/0.1 |
| Ft/Min Unit Resolution | 0.0001/0.001/0.01/0.1 |
| Yd/Min Unit Resolution | 0.0001/0.001/0.01/0.1 |
| Accuracy | ±(0.1% of rdg. +2 digit) |
| Measure Distance | 5~30 cm (non-contact) |
| Power Consumption | 5uA (Idle), 18 mA (measurement) |
| Time base | 4.0 Mhz Quartz Crystal |
| Sampling time | 1 second (＞60 RPM) ＞1 second (10~60 RPM) |
| LCD Size | 33(L) * 15(W) mm |
| Operating Temperature | 0~50℃ |
| Operating RH% | Humidity ＜80% |
| Storage Temperature | -10~50℃ |
| Storage RH% | Humidity ＜90% |
| Meter Size | 165(L) * 51(W) * 32(H) mm |
| Weight | ~90g |
| Battery | 9V battery *1 PC |

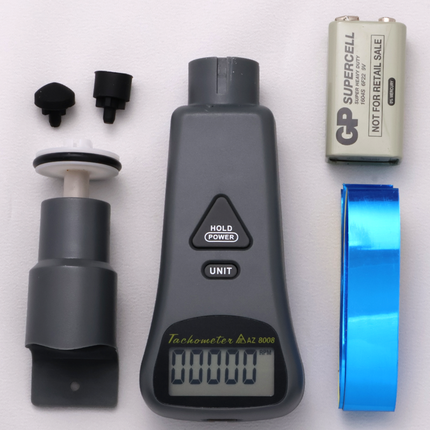

| Standard Package | Meter, Battery, Manual, Paper Box, Reflective Tape, Convex Tip, Concave Tip |
Youtube
FAQ
|
【FAQ of 8008 AZ 2-in-1 Combo Tachometer】 Q1: What’s the difference between ar contact and non-contact tachometer? A1: Use non-contact (laser) type for high-speed rotation or hard-to-reach areas where safety is a concern. Use contact type when you need to measure linear surface speeds (like conveyor belts) or when reflective tape cannot be applied to the object.
Q2: What factors affect the accuracy of a laser RPM meter? A2: Accuracy depends on the distance from the object, the angle of the laser, and the quality of the reflective tape. Ensure the laser is perpendicular to the tape and keep the measurement distance within the manufacturer's specified range (typically 5-50cm) for optimal results.
Q3: How do you measure the speed of a conveyor belt using a tachometer? A3: Use a combo tachometer like the 8008 AZ with a surface speed wheel attachment. By placing the wheel directly on the moving belt, the device calculates linear speed in units such as m/min or ft/min instead of just RPM. |
